Perfect instruments for 3D Documentation and Surveying in AEC, Public Safety – Forensics and Product Design.

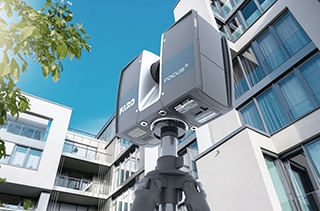

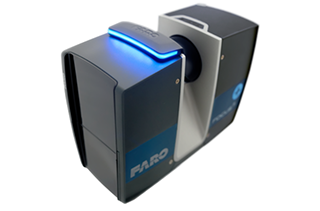

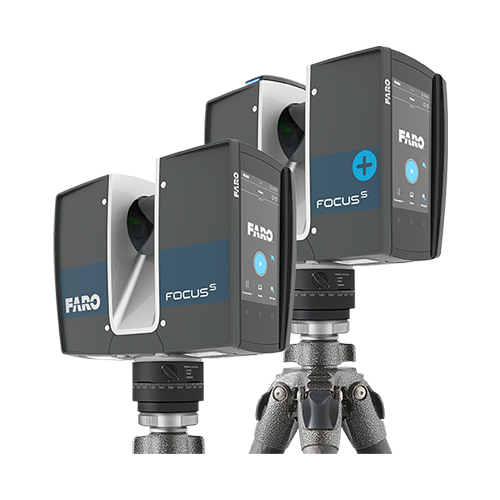

FARO’s latest ultra-portable Focus S Laser Scanner enables you to capture fast, straightforward and accurate measurements of complex objects and buildings. The intuitive touch-screen of the Focus S models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural color overlay to the scan data in extreme lighting conditions. Familiar traits such as lightweight, small size, and a 4.5-hour battery runtime per charge make the Focus S Laser Scanner truly mobile for fast, secure, and reliable scanning.


Accuracy and range

The Focus Laser Scanner Series provides the highest accuracy and ranges up to 350m by using a combination of the most advanced sensor technologies.

Adaptable and quick

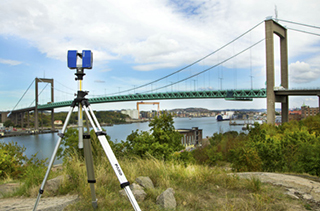

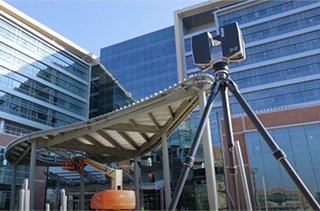

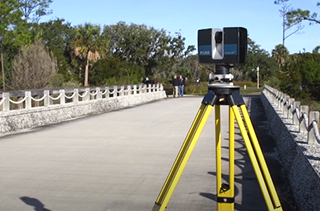

Document any project site or scene, whether indoors or outdoors, in bright sun or complete darkness in minutes. Customize settings to adapt to any scene and capture up to 976,000 points/sec.

IP Rating – Class 54 and extended temperature range

With the sealed design, the Focus devices are certified with the industry-standard Ingress Protection (IP) Rating and classified in class 54 against environmental influences. In addition, there is a scanning challenging temperature conditions due to an extended temperature range.

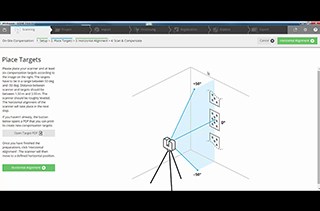

On-Site compensation

With the on-site compensation functionality, users can verify and adjust the Focus compensation on-site or in the office immediately before scanning, ensuring high-quality scan data and traceable documentation. A comprehensive compensation document is automatically generated.

On-Site registration

During on-site data capture, the laser scanner immediately transmits scanned data wirelessly to FARO SCENE for real-time scan processing and registration, providing efficiency and time savings.

Scan Group feature (Rescanning of Distant Targets)

The Scan Group feature identifies multiple areas to be rescanned with higher resolution to either perform accurate target detection or to capture smaller areas of interest with greater detail.

Retake photos option

No need to redo the entire scans. Select the images to retake the photos in seconds.

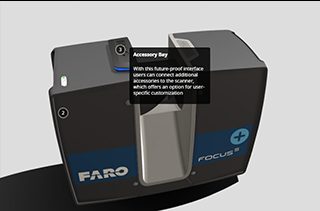

Integrated accessory bay

With this future-proof interface, users can connect additional accessories to the scanner, which offers an option for user-specific customization.

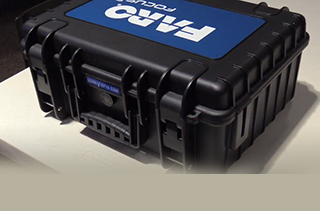

Lightweight and easily portable

Weighs only about 4.2 kg the Focus Laser Scanner is extremely mobile and portable.

HDR photo overlay

With the Focus HDR functionality, challenges like lighting situations will never subtract users’ scan results. Predefined HDR profiles increase the picture quality which is recorded in very bright or dark environments.

Digital hashing function

The automatic digital hashing feature provides encrypted security to all raw scans by hashing data at the time of capture. Use the Scan Verification Tool to ensure that the scan files have not been altered in any way and data is unchanged since first captured.

Status indicator

The visual indicator provides the operator the status of the laser scanner for improved on-site safety.



Range FocusS 150: 0.6 – 150m
High Dynamic Range (HDR) photo recording 2x/3x/5x
Measurement speed: up to 976,000 points per second / up to 2 million points per second (150 Plus)
Ranging error: ± 1mm
Sealed design – Ingress Protection (IP) Rating Class 54
On-site compensation
On-site registration (with FARO SCENE 2018)
Scan Group Feature (rescanning of distant targets in higher resolution)
Digital hashing function
Retake Photo Option
Accessory Bay
Angular Accuracy: 19 arcsec for vertical/horizontal angles
Integr. colour camera: Up to 165 mio. pixel
Laser class: Laser class 1
Weight: 4,2kg
Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
Size: 230 x 183 x 103mm
Scanner control: via touchscreen display and WLAN



Focus S150/350 New Features Introduction
