Small Object and Jewellery
3D Scanner- IN300

For precise scanning and Delicate objects

Book Demo

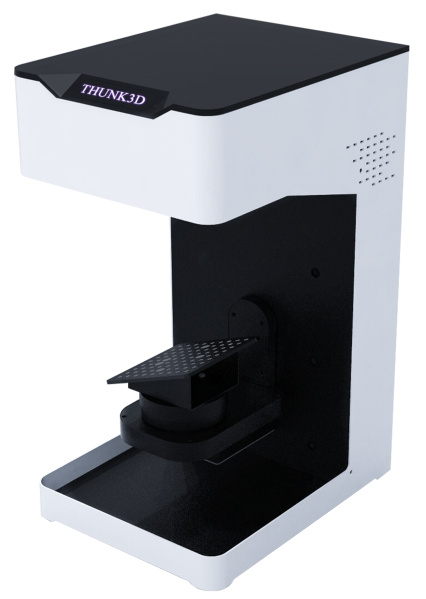

Thunk 3D IN300 scanner

The Thunk 3D IN300 scanner is perfect for small and intricate objects like jewellery and tiny screws. It has a closed-frame structure and is highly accurate at 10 microns. With its 5-megapixel camera, it captures fine details and provides high-resolution images. Its user-friendly interface allows for easy integration into your workflow. The scanner has received CE, FCC, and WEE certifications, ensuring compliance with international standards. Its advanced technology enables quick creation of 3D models.As a result, it is an exceptional investment for businesses looking to enhance their jewellery or any tiny parts designing and manufacturing process.

Key Features

  • Engineered to capture the most intricate and minuscule details in high resolution, ensuring the finest quality for your scans.
  • An auto rotary table that can rotate in multiple axes to scan the maximum way possible from all angles.
  • User-friendly , Perpetual and free 3D scanning software
  • High accuracy can reach up to 10 microns, ensuring precision and reliability.
  • Rotary table can carry up to 1kg of weight jewellery or small objects, making it suitable for a wide range of objects.
  • CE, FCC, and WEE Certified for its reliability and accuracy, providing you with the confidence that your scans will be accurate every time.
  • Portable and compact design, making it easy to transport and use in a variety of settings.


Model name: JS-300 IN-300
Scan Volume: 60 x 60 mm (XY) 80 x 80 mm (XY)
Resolution: 60 x 60 mm (XY)
Export Format: St l
Camera: 2x 25mm 5 megapixels 2x 16mm 5 megapixels
Scanner type: Stripe light p rojection
Scan speed: approx. 2 s ec./frame
Pixel Sensor: 0.06mm 0.01mm
Striplight projector: 1280*1080 D PI
Scan positioning: 2 motor-driven r otary axes
Scan mode: Auto Scan or Manual (Multi Scan)
3D measurement precision: "<"0.05 mm
Precision point cloud: +/-0.006 mm +/-0.001 mm
System requirements: Intel CPU/Win10 (64bit+)/
graphics a
cards (2GB+) Only Nvida
re supported
Connection: USB3 .0
Certifications: CE/FCC /WEEE
Dimensions: 40 x 26 x 20 cm (H x W x D)
Power supply: 230V/50hz , 60 watts
Weight: 5.8 5 kg
Volume weight: 12 kg

Blog / Case Study


A jewellery and miniature parts 3D scanner is a specialised scanner that can accurately scan small and intricate objects, such as jewellery and tiny machined parts. It uses advanced technology to capture fine details and create 3D models of these objects.

To 3D scan small and tiny parts, you can use a specialised 3D scanner especially a closed frame that is designed for this purpose. These scanners typically have high accuracy levels and can capture fine details, such as those found in jewellery and small machine parts.

Our Jewellery 3d scanner IN300 and JS 300 have 5-megapixel camera resolution.

Jewellery 3d scanner provides .STL file output that can be exported directly from the 3D scanning software.

Precise3DM is an authorised reseller of jewellery 3D scanners in India, and also a reseller of Geomagic software in India to demo post-scanning applications of reverse engineering and jewellery 3D inspection.D contact us or fill out the form to buy the Jewellery 3d scanners in india.

you need to place the parts inside the rotary table and predefine the exposure settings, scanner automatically scans all the sides of the jewellery items.

Yes, our 3d scanner is capable of scanning small diamond stones.

yes, jewellery 3d scanners can be used for other applications such as dental, screws fasteners scanning, small machine parts scanning or any objects that are small in size it can scan.

It can scan a minimum of 1 mm to a maximum of 100 mm sized jewellery object it can 3d scan.

Jewellery 3d scanners can provide accuracy upto 10 microns.

The scanner uses a closed-frame structure and a high-resolution camera to capture images of the object from multiple angles. The software then processes these images and creates a 3D model of the object.

Using a specialised scanner for small and intricate objects ensures high accuracy and resolution, which is essential in industries such as jewellery and precision manufacturing. It also enables the quick and easy creation of 3D models, reducing the time and effort required for manual measurement and modeling.

Jewellery and miniature parts 3D scanners can be used to 3D scan a wide variety of small and intricate objects, such as rings, necklaces, earrings, watch parts, and small mechanical and machined components.

When purchasing a scanner, look for certifications such as CE, FCC, and WEE to ensure compliance with international standards and top-notch quality.

Most scanners come with user-friendly software that allows for easy integration into existing workflows. You can also consult with the manufacturer or a technical expert to ensure seamless integration.
