FREESCAN X7

Laser Handheld 3D Scanner

GET A QUOTE NOW
Laser-Handheld-3D-Scanner-Freescan-X7

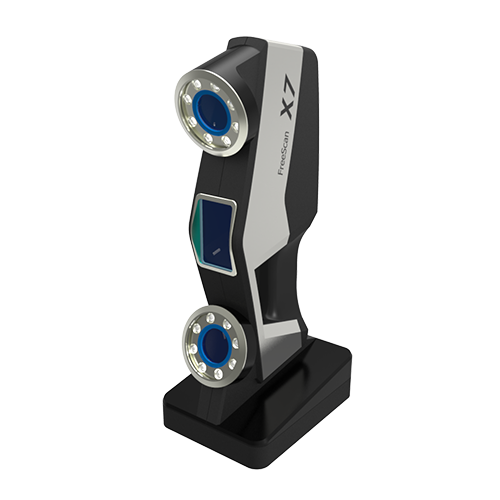

The new FreeScan series is an ultra-portable handheld 3D laser scanner. It features flexible and convenient scanning mode, and the 3D industry scanner’s high accuracy and stability. The FreeScan series is applicable for a wide range of operating environments and a variety of measured objects. It can maximize scanning efficiency to achieve excellent results.

KEY FEATURES

Laser-Handheld-3D-Scanner-Freescan-X7

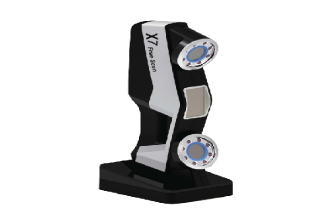

Light body, Easy operation, Good stability

Ultra-portable laser handheld 3D measurement system weighs only 0.95 kg, narrow space operation accessible, external clamping positioning is not needed.

Laser-Handheld-3D-Scanner-Freescan-X7

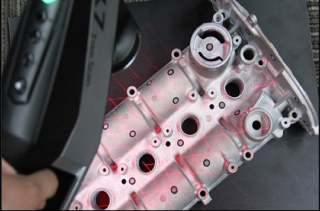

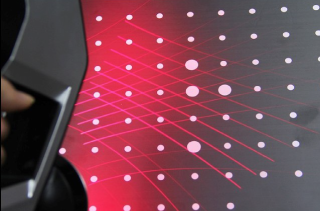

Original HOI Scanning technology enables higher speed and higher accuracy

The original HOI (hybrid of optics and inertia) scanning technology enables a substantial increase in accuracy and reliability of the point cloud registration. For large workpiece scanning, this results in more than a two-fold performance improvement.

Laser-Handheld-3D-Scanner-Freescan-X7
High accuracy, High speed

Accuracy up to 0.03mm, under German VDI/VDE 2634 standard. High-speed scanning to 480,000 points/second.

Laser-Handheld-3D-Scanner-Freescan-X7
Almost unlimited 3D Scanning, Adaptable to complex environments

Adaptable to measurement tasks in indoor, outdoor, and other complex environments.

Laser-Handheld-3D-Scanner-Freescan-X7
High compatibility

Compatible with DigiMetric SHINING 3D photogrammetric systems to measure large workpieces.

SPECIFICATIONS

Freescan X7

Weight 0.95 kg
Dimension 130 x 90 x 310 mm
Light Source 14 line laser ray, Class II ( eye safe )
Scan Speed 480, 000 scans/s
Single Scan Range 300×275mm
Resolution 0.05 mm
Measuring Accuracy 0.03 mm
Volumetric Accuracy 0.02 mm+0.06 mm/m
Volumetric Accuracy (Combined With DigiMetric) 0.020 mm+0.025 mm/m
Scan Range 100-8000 mm ,extensible
Data Compatible Software 3D Systems(Geomagic Solutions)、InnovMetric Software(PolyWorks)、Dassault Systemes(CATIA V5 and SolidWorks)、PTC(Pro/ENGINEER)、Siemens(NX and Solid Edge)、Autodesk(Inventor、Alias、3ds Max、Maya、Softimage)

DEMO VIDEO

FREESCAN X7

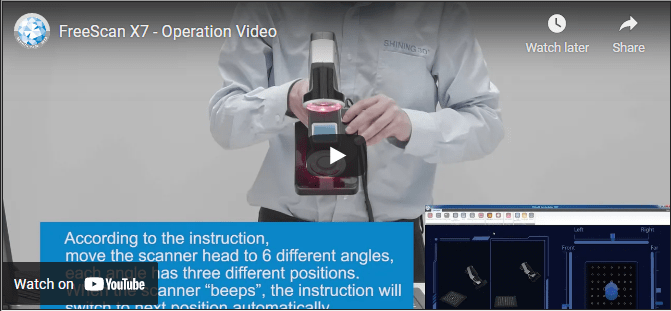

Operation Video

FREESCAN X7

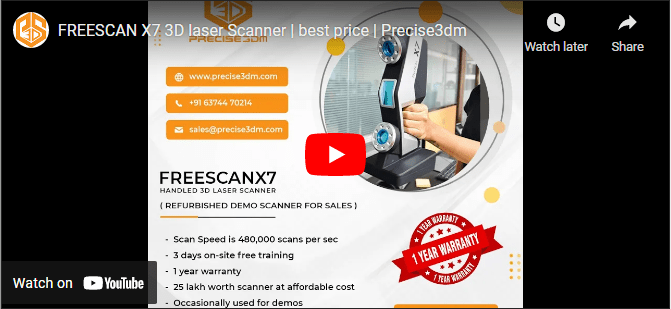

Introduction on freescan X7

FREESCAN X7

Operation Video

FREESCAN X7

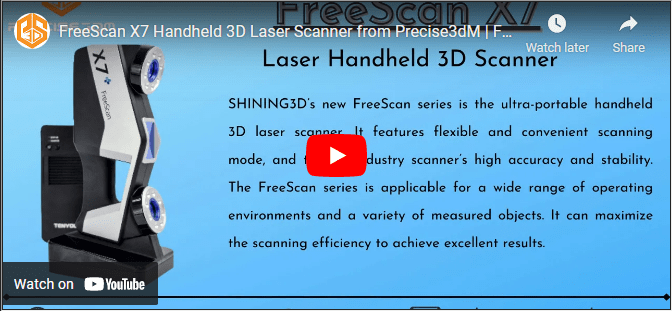

Introduction on freescan X7

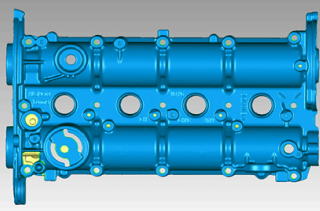

SAMPLE DATA

3D OBJECT VIEWER

Frequently asked questions

What is the technology behind FreeScan X7?

FreeScan X7 is a hybrid of optics and inertia handheld technology that enables to scan at higher speed and accuracy which is used for scanning large parts like turbine blades, pump, tool & die, foundries, casting & molding, etc.

Why is that a laser Scanner preferred over a structured light Scanner?

A laser Handheld scanner is a shop floor 3D Scanner that can Scan black and shiny surfaces in harsh environments, wherein the case of a structured light Scanner is not possible and it also needs a lab setup.

What is the accuracy and resolution of FreeScan X7?

FreeScan X7 has an accuracy of over 0.03 with a resolution of 0.05 mm, perfect for Scanning large parts with high accuracy.

What is the working standard of FreeScan X7?

It is a high precision metrology grade handheld laser type Scanner with German VDI/VDE 2634 certified standard.
