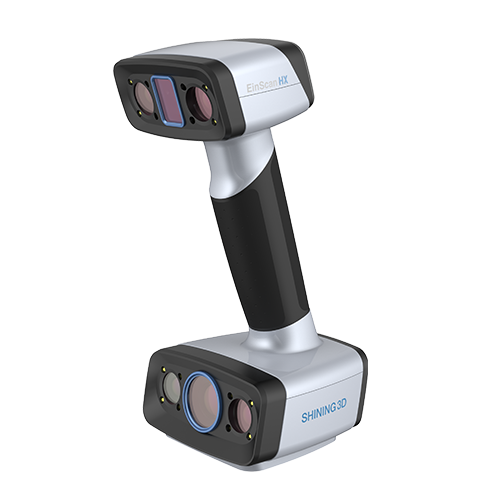

Hybrid Blue Laser & LED Light Source Handheld 3D Scanner


Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into the EinScan HX handheld 3D Scanner. The hybrid laser and LED light sources make the EinScan HX compatible with a wider range of object sizes, meeting the multiple needs of users. High efficiency and reliable results give EinScan HX more application possibilities.

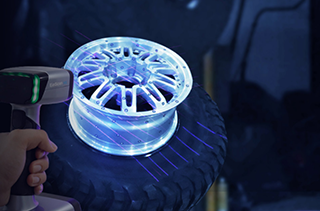

Hybrid Blue Laser & LED light

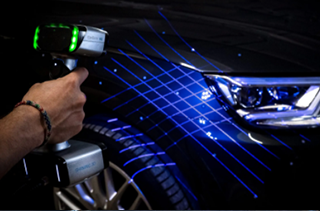

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D Scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surfaces.

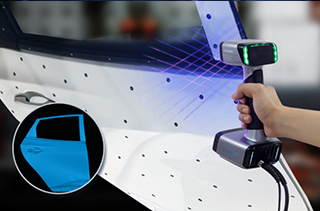

Reliable results
  • The high resolution and accuracy meet the need of most industrial applications for reverse engineering and measuring. Minimum point distance 0.05 mm
  • Accuracy up to 0.04 mm under Laser Scan

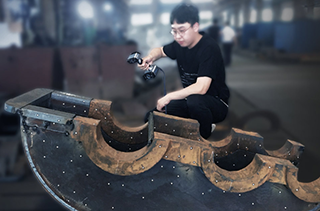

High efficiency

The processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/second, and multiple blue laser lines under Laser Scan Mode make scanning of most objects take just minutes for use in reverse engineering, CAD/CAM, 3D printing, and more.

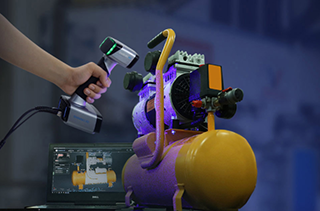

Portable & easy operation
  • HX is plug and play scanner with user-friendly software, which is easy to learn for beginners and experienced technicians alike. Portability and flexibility were the main design decisions for the EinScan HX and its ergonomic design results in a more efficient and comfortable scanning experience.
  • Ergonomic Design
  • Weight:710g
Full Color

With the built-in color camera, it supports full-color texture capturing and tracking by texture.

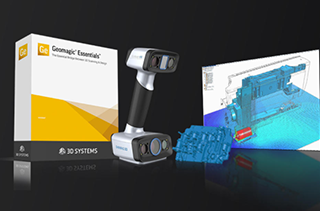

EinScan HX Reverse Engineering design bundle

A hybrid light source 3D Scanner with reverse engineering and CAD capabilities.


Scan Mode

Rapid Scan

Laser Scan

Scan Accuracy Up to 0.05mm Up to 0.04mm
Volumetric Accuracy* 0.05+0.1mm/m 0.04+0.06mm/m
Scan Speed "1,200,000 points/s 20FPS" "480,000 points/s 55FPS"
Camera Frame Rate 55FPS 55FPS
Align Mode Feature Alignment、Markers Alignment、Texture Alignment、Hybrid Alignment Markers Alignment
Working Distance 470mm 470mm
Depth of Field 200mm-700mm 350mm-610mm
Max FOV 420mm*440mm 380mm*400mm
Point Distance 0.25mm-3mm 0.05mm-3mm
Light Source Blue LED 7 Blue Laser Crosses
Safety Eye-safe Class I(Eye-safe)
Built-in Color Camera Yes
Texture Scan Yes No
Connection Standard USB3.0
Output Formats OBJ;STL;ASC;PLY;P3;3MF
Weight (packed) 7.0 kg
Dimensions 108mmx110mmx237mm
Weight 710g
Operating Temperature Range 0-40℃
Operating Humidity Range 10-90%
Certifications CE,FCC,ROHS,WEEE,KC
Recommended Configuration OS:Win10,64 bit;Graphics card: NVIDIA GTX/RTX series cards,higher or equal to GTX 1080;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB

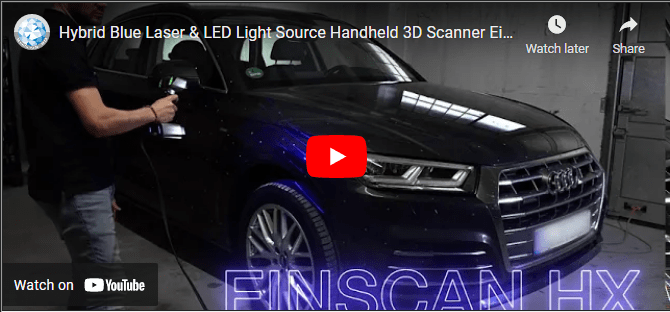

Hybrid Blue Laser & LED Light Source Handheld 3D Scanner EinScan HX Demo - 3D Digitizing Solution


Frequently asked questions

What kind of technology is used in the EINSCAN HX scanner?

EINSCAN HX scanner uses blue LED light and a blue laser that innovatively integrates German technology.

Which country makes the EINSCAN HX scanner?

EinScan HX scanner has been considered for its ergonomic German design and it is made in China.

What is the range of scanning in the EINSCAN HX scanner?

This high resolution and accuracy of scanning point distance 500 mm meet the needs of most industrial applications.

What are the advantages of the EINSCAN HX scanner?

It supports full-color texture capturing by the handheld method.

It is less sensitive to ambient light, gives better performance to reflective and dark color surfaces.

It is used for various metrological purposes.
