Inheriting the multi-functional and modular design of the EinScan Pro series handheld 3D Scanners, EinScan Pro HD delivers unparalleled performance in capturing high resolution and accurate scans through handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D Scanning experience. It is a reliable assistant for designers and engineers who care about high-quality 3D modeling.
 (A).jpg)

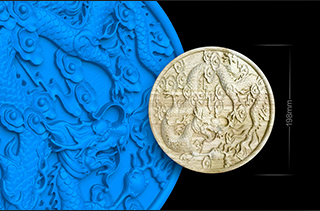

By adopting a new structure light projection modular, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized to Handheld HD Scan Mode. By 0.2mm minimum point distance setting with an optimized algorithm, it brings high resolution and accuracy in handheld scanning comparable to traditional fixed-position scans by Handheld HD Mode.
 (A).jpg)

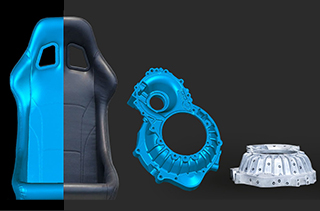

With a new lighting projection hardware and software algorithm, EinScan Pro HD is capable of scanning a wider range of objects which are black or similar dark colors and casting metal surfaces, enriching the capability for 3D Scanning of materials.
 (A).jpg)
EinScan Pro HD is a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high-speed data transmission.
 (A).jpg)

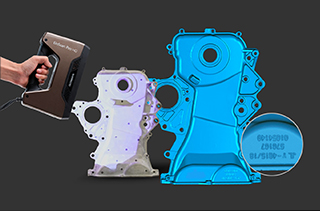

Using different kinds of positioning methods, both, the scanner and the objects can be moved during scanning. It delivers an accuracy of up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is about 0.045mm+0.3mm/m.
 (A).png)

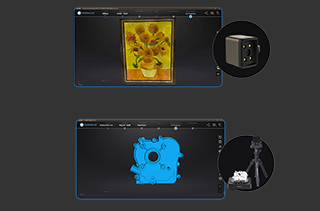

The modular Color Pack and Industrial Pack are optional add-ons to EinScan Pro HD extending your scanning experience for more applications. Multiple positioning methods, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment, and texture alignment (with Color Pack ) greatly enhance the scanning efficiency without additional preparation.
 (A).png)

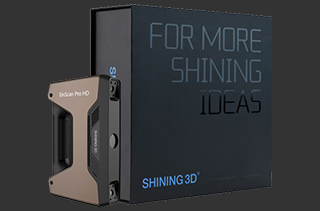

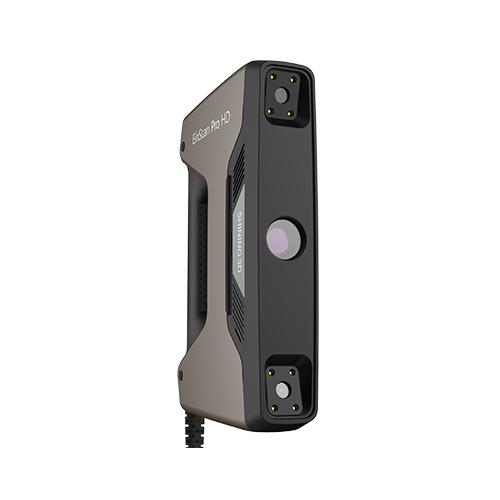

The ergonomically designed EinScan Pro HD is incredibly lightweight. You can easily take the scanner anywhere you go. An easy plug-and-play setup lets you run the scanner without complex installation. The compact size allows the scanner to move freely for the ultimate scanning experience.
 (A).png)

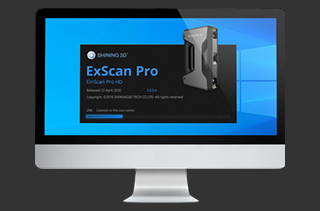

ExScan Pro is a professional software for 3D Scanning and data processing with a collection of both scan and mesh editing tools for generating high-quality 3D models.

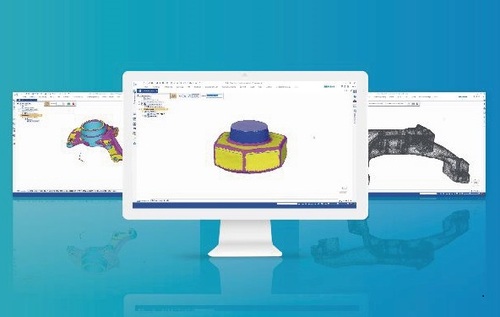

EinScan Pro HD, including Solid Edge SHINING 3D Edition with the mainstream 3D CAD design functions, brings a convenient and powerful 3D design tool to help achieve your creative ideas.
 (A).PNG)

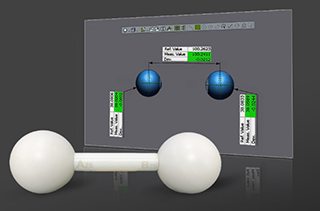

Factory tested accuracy according to VDI/VDE 2634 standards.
A professional multi-functional 3D Scanner with reverse engineering and CAD capabilities.
Scan Mode |
Handheld HD Scan |
Handheld Rapid Scan |
"Fixed Scan with Turntable (with Add-on: Industrial Pack)" |
"Fixed Scan without Turntable (with Add-on: Industrial Pack)" |
|---|---|---|---|---|
| Scan Accuracy | up to 0.045 mm | up to 0.1 mm | 0.04 mm(single shot accuracy) | 0.04 mm(single shot accuracy) |
| Volumetric Accuracy* | 0.3 mm/m (Markers Alignment) | 0.3 mm/m (Markers Alignment) | / | / |
| Scan Speed | 10 frames/s; 3,000,000 points/s | 30 frames/s; 1,500,000 points/s | Single Scan＜0.5s | Single Scan＜0.5s |
| Point Distance | 0.2 mm-3 mm | 0.25 mm-3 mm | 0.24 mm | 0.24 mm |
| Single Scan Range | 209*160 mm——310*240 mm | |||
| Camera Frame Rate | 55FPS | |||
| Depth of Field | ±100 mm | |||
| Working Distance | 510 mm | |||
| Light Source | LED | |||
| Align Mode | "Markers Alignment Feature Alignment[2], Hybrid Alignment[3]" | "Markers Alignment, Texture Alignment[4], Feature Alignment, Hybrid Alignment" | Turntable Coded Targets, Feature, Markers, Manual Alignment | Markers, Feature, Manual Alignment |
| Texture Scan | Yes (with Add-on: Color Pack) | Yes (with Add-on: Color Pack) | Yes (with Add-on: Color Pack) | Yes (with Add-on: Color Pack) |
| Outdoor Operation | Set up the shelter or cover to avoid direct sunlight | |||
| Special Scan Object | For the transparent, highly reflective or some dark objects, please spray powder before scanning | |||
| Software Included | ExScan Pro, Solid Edge SHINING 3D Edition | |||
| Output Formats | OBJ; STL; ASC; PLY; P3 ; 3MF | |||
| Scanner Body Weight | 1.25kg (include the USB3.0 cable) | |||
| Operating Temperature Range | 0-40℃ | |||
| Operating Humidity Range | 10-90% | |||
| Supported OS | Win10,(64bit) | |||
| Recommended Configuration | Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0 | |||
| Required Configuration | Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G | |||
|
"[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm.
The conclusion is obtained by measuring the center of the sphere under marker alignment. [2]. Select this alignment when scanning objects with rich geometrical features on the surface. [3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically. [4]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object." |
||||

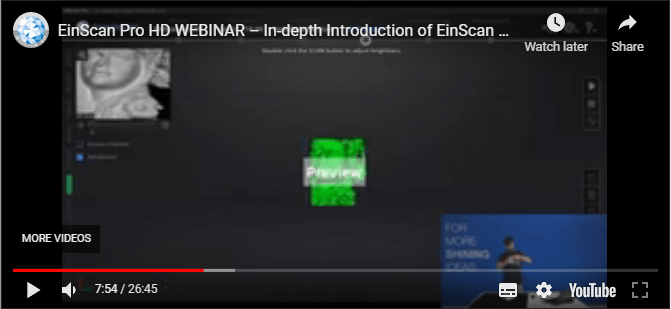

In-depth Introduction of EinScan Pro HD
Einscan series are professional scanner designed by German and manufactured by shinning 3D (Chinese company).
Technology behind Einscan Pro HD is structured White light scanning.
No. While 3D scanners do not directly provide output parametric data, after 3d scanning we need reverse engineering software like Geomagic Design X (Comprehensive reverse engineering tool) for creating parametric model.
EinScan Pro HD gives the high accuracy of 0.04 mm with high resolution of 0.2mm.
No, parts in motion can’t be scanned only static parts can be scanned.
It scans a wide range of objects of light colours, for dark colours developer spray can be sprayed and scanning can be done.
