VEHICLE OCCUPANT & ARCHITECTURE

OVERVIEW

Vehicle Occupant & Architecture study enables engineers to validate automotive designs against safety, occupant ergonomics, and visibility standards are measurements are taken under SAE standards

In-house Hardware and Software
In-house Vehicle Teardown Lab
50+ Specialists for BIW Scan to CAD

VEHICLE OCCUPANT & ARCHITECTURE

OVERVIEW

Vehicle Occupant & Architecture study enables engineers to validate automotive designs against safety, occupant ergonomics, and visibility standards are measurements are taken under SAE standards

In-house Hardware and Software
In-house Vehicle Teardown Lab
50+ Specialists for BIW Scan to CAD

PROCESS AND METHODOLOGY

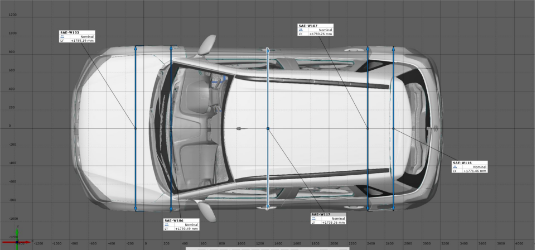

EXTERIOR MEASURE

All the exterior measure like, wheel base, windshield angle, over hang distance, Ground clearance etc are measured.

exterior-measure

INTERIOR MEASURE

All the interior measurement like, steering angle, seating distance, pedals clearance, cargo compartment height etc are Measured.

interior-occupant-&-architecture

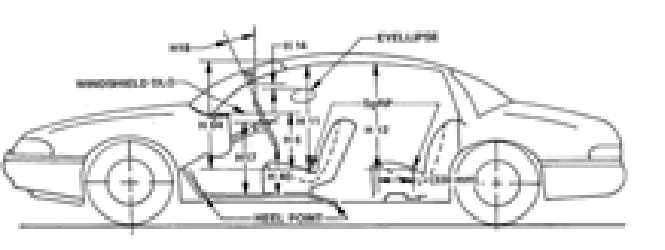

MANIKIN MEASURE

All manikin measure like, leg room, head room, seat travel, Manikin angles, etc are Measured.

mankin-measure-vechicle-occupant-&-architecture

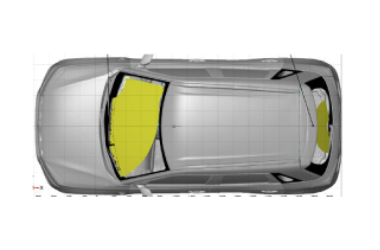

SURFACE MEASURE

All the wind shield , window , sunroof glass surface area are measured.

vehicle-occupant-&-architecture-surface-measure

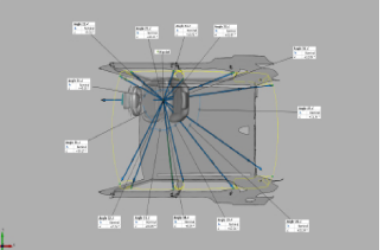

VISION MEASURE

The driver vision and obstruct angles are measured.

vision-measure

DELIVERABLES

We deliver Measurement Schematics in PDF format.
WHAT’S NEXT?
Download Brochure Fix online or offline meeting Request for proposal

FREQUENTLY ASKED QUESTIONS

Benchmarking involves a structured comparison between similar products, services or processes on some dimensions of performance.

Vehicle Occupant & Architecture study enables engineers to validate automotive designs against safety, occupant ergonomics, and visibility standards are measurements are taken under SAE standards

A vehicle architecture respectively describes the physical layout of a vehicle and the way it realizes its function by a given set of basic architectures parameters and modules.

The H-point (or hip-point) is the theoretical, relative location of an occupant's hip: specifically the pivot point between the torso and upper leg portions of the body — as used in vehicle design, automotive design and vehicle regulation as well as other disciplines including chair and furniture design.

We deliver Measurement Schematics in PDF format
