4 × 12.3 MP Imaging Units

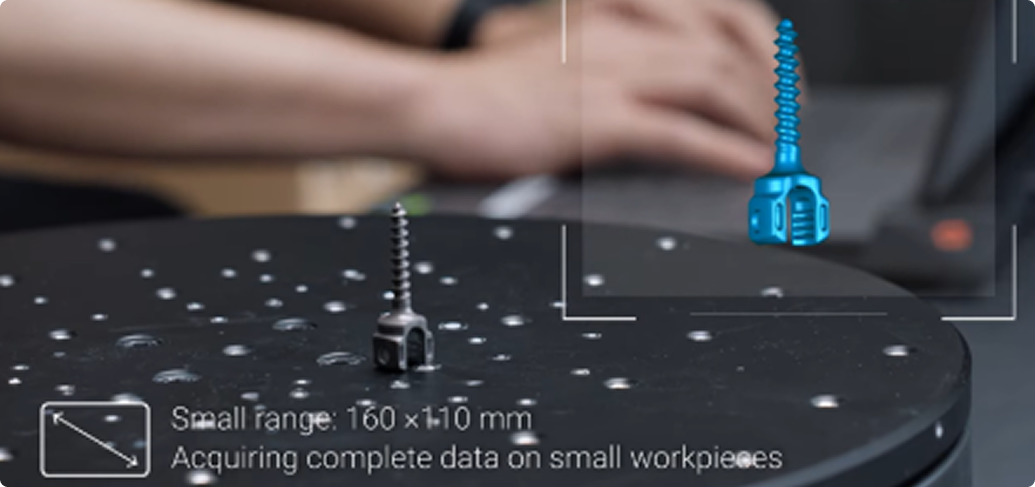

Configurable Dual Measurement Range
Monocular-Stereo Fusion (MSF) Technology
Multi-Level Exposure Control
sm@precise3dm.com | sales@precise3dm.com
OptimScan Q12, equipped with 4 × 12.3 MP cameras, captures high-resolution surface geometry with consistent accuracy across complex part features. With integrated hardware acceleration and advanced 3D reconstruction algorithms, the system `delivers measurement accuracy up to 0.005 mm, ensuring consistent and repeatable scanning results.

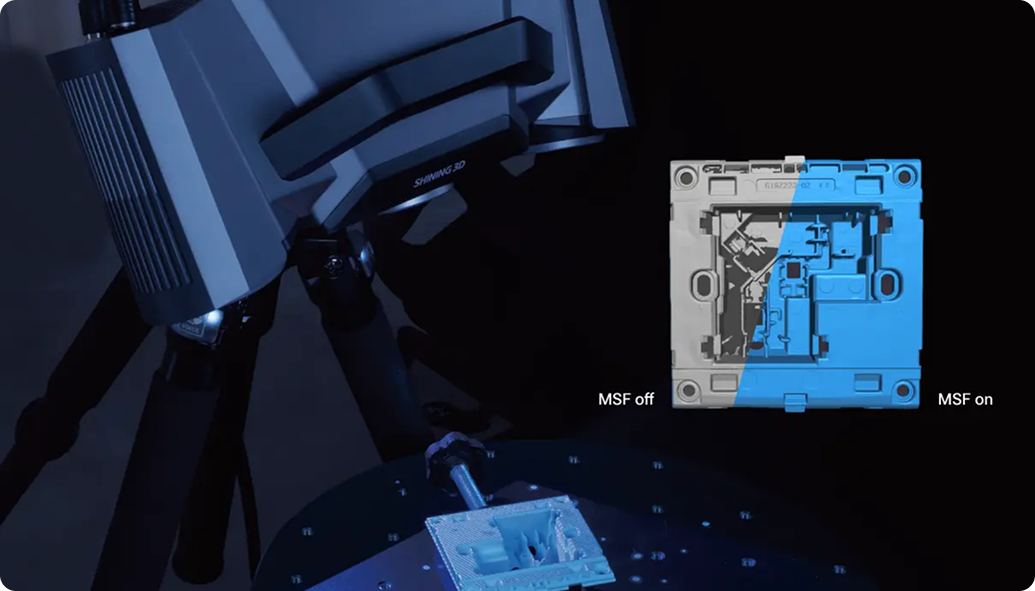

MSF technology enhances overall data completeness by combining monocular and stereo imaging. This is especially effective for capturing difficult areas such as edges, joints, and recessed features commonly found in industrial components.
Powered by a dual-chip computing module, the system achieves high-speed image acquisition—each scan frame is completed in under one second, capturing approximately 12 million data points per shot.
The scanner supports multiple exposure modes, including automatic exposure
control, to reduce scan time while maintaining optimal performance across varied surface types and finishes.

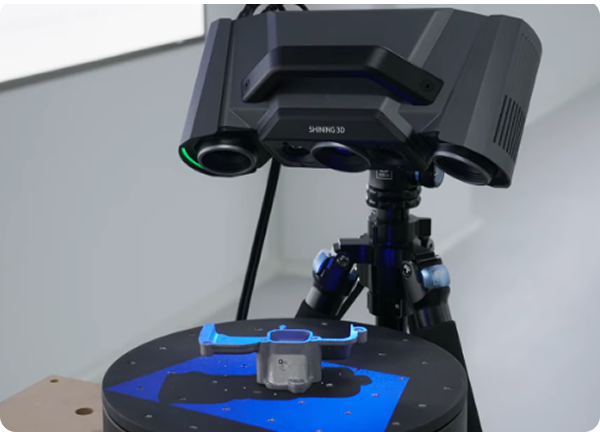

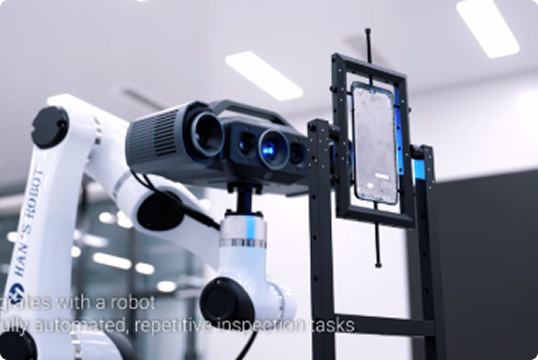

The OptimScan Q12 features a compact, portable structure suitable for handheld operation.For semi-automated setups, it supports integration with a tripod and a motorized turntable (up to 20 kg load). For fully automated workflows, it can be mounted on a robotic system to enable repeatable, high-precision inspections.
OptimScan Q12 integrates with an intelligent 3D inspection system, enabling
a fully automated process from scanning to report output.
At Precise3DM, we are an authorised master reseller for Shining3D metrology-grade 3D scanners. We offer an on-site POC demonstration of OptimScan Q12 in India. Once you become a user of OptimScan Q12, you will be a premium customer of Precise3DM. We offer very good on-site training in two different phases, an SOP for scanner usage, and peace-of-mind warranty coverage. Our Goal is to equip our customers with the right 3D scanner for metrology applications..
OptimScan guides users through each phase, from system calibration to 3D scanning and editing, therefore making the process clear and easy to follow.
Comes with intelligent tools for noise removal, mesh alignment, data merging, and file optimization. The result is a clean, reliable 3D model ready for inspection or CAD output.
The software supports mixed-resolution scanning in a single session. Users can apply high, medium, or low resolution selectively within one project, improving efficiency while maintaining detail where needed.
Scanned files can be exported as watertight or non-watertight models in standard file types, allowing seamless integration with widely used 3D software for inspection, design, or manufacturing workflows.

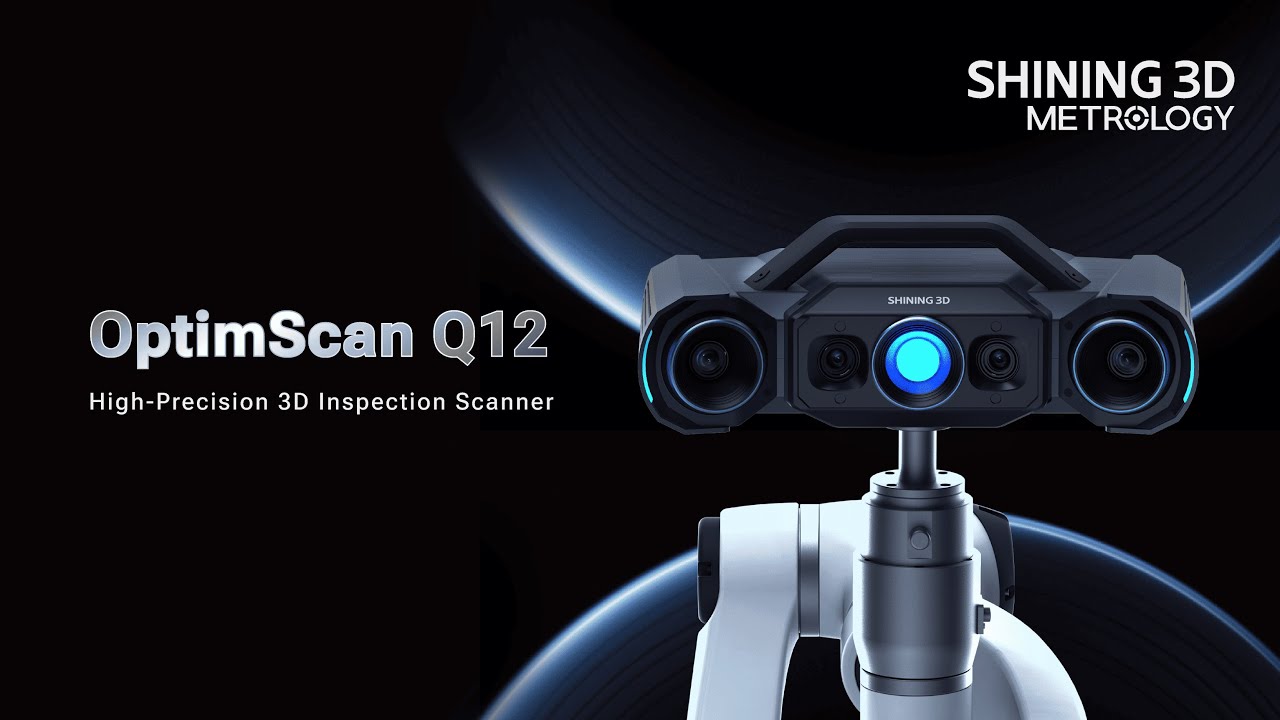

OptimScan Q12 | High-Precision 3D Inspection Scanner
OptimScan Q12 | Quickly Discover the Features You Need with OptimScan Q12
OptimScan Q12 | Integrates with SHINING3D Inspect Module for Full-Field Inspection
No. The scanner is designed for dimensional accuracy only. It does not include a color camera and does not support texture mapping.
This system is engineered for small to medium-sized parts where precision requirements are high—ideal for industries such as automotive, aerospace, medical tooling, and electronics.
The system supports markerless operation for general use. However, for higher-precision workflows, it can recognize non-reflective markers in 1 mm, 2 mm, or 4 mm sizes to improve data alignment.

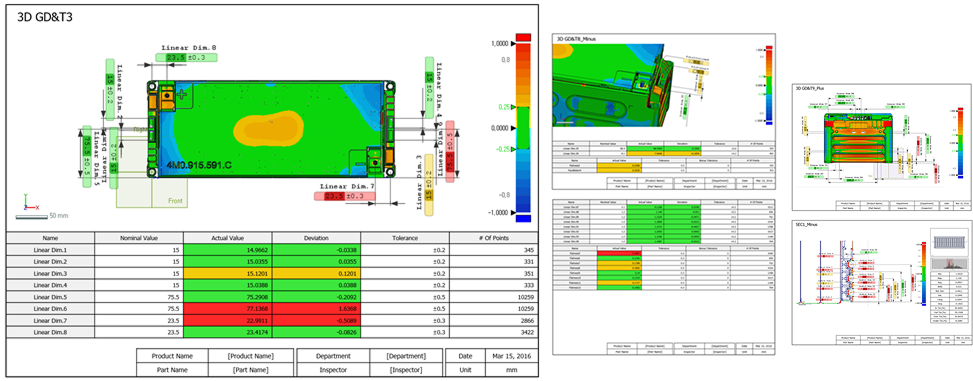

The integrated inspection module supports complete measurement functionality, including surface deviation, section comparison, feature extraction, dimensional analysis, tolerance check, gauge measurement, and report generation.
