FreeScan UE Nova
High-Precision Wireless 3D Metrology Scanner with Extended Coverage
Wide Measurement Field: 2.6 × 2.2 m
Rapid Data Acquisition with 50 Laser Lines
Integrated Markerless Video Photogrammetry (VPG)
Wireless Communication and Processing
Email us
sm@precise3dm.com | sales@precise3dm.com
Wireless Industrial 3D Scanner Designed for Precise & Extended Measurement Range
The FreeScan UE Nova delivers metrology-grade performance with a significantly expanded scanning window. It supports efficient acquisition of large-scale geometries while maintaining high portability, operational throughput, and application flexibility.
Broad-Field Laser Scanner: High-speed 3D
scanning with Maximum area Coverage
The FreeScan UE Nova is engineered for 3D Scanning
large-scale components, delivering high-speed acquisition and
wide coverage with reduced repositioning.
Three FOV Options Based On Object Size &
Application
FreeScan UE Nova offers selectable working modes, allowing the operator to adapt the scanning
distance based on the physical environment and detail requirements.
Near Mode (300–800 mm): Suitable for confined areas and fine-detail scanning

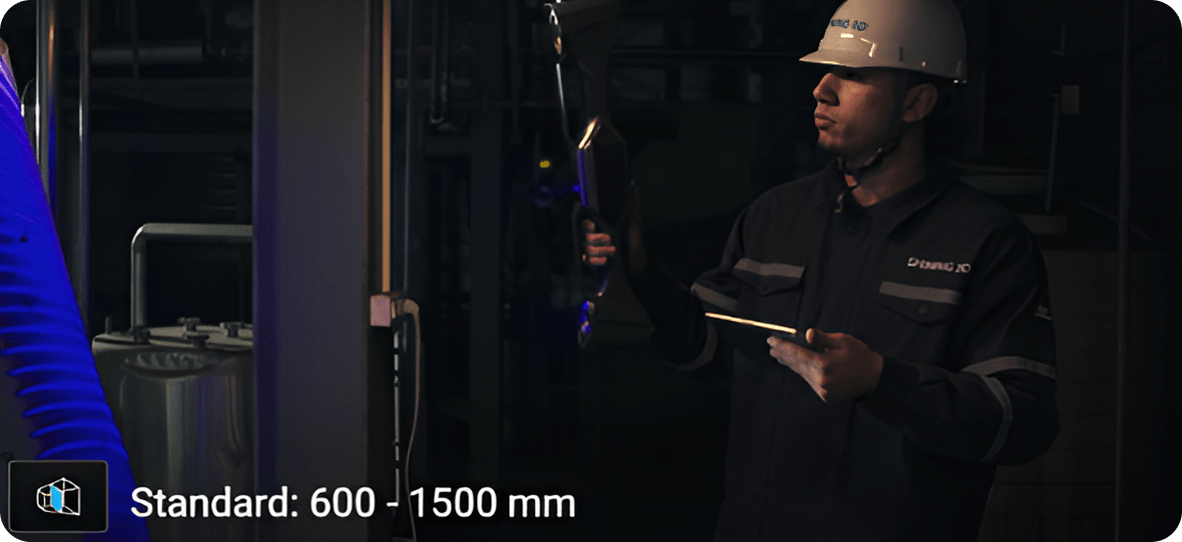

Standard Mode (600–1500 mm): Designed for general component measurement

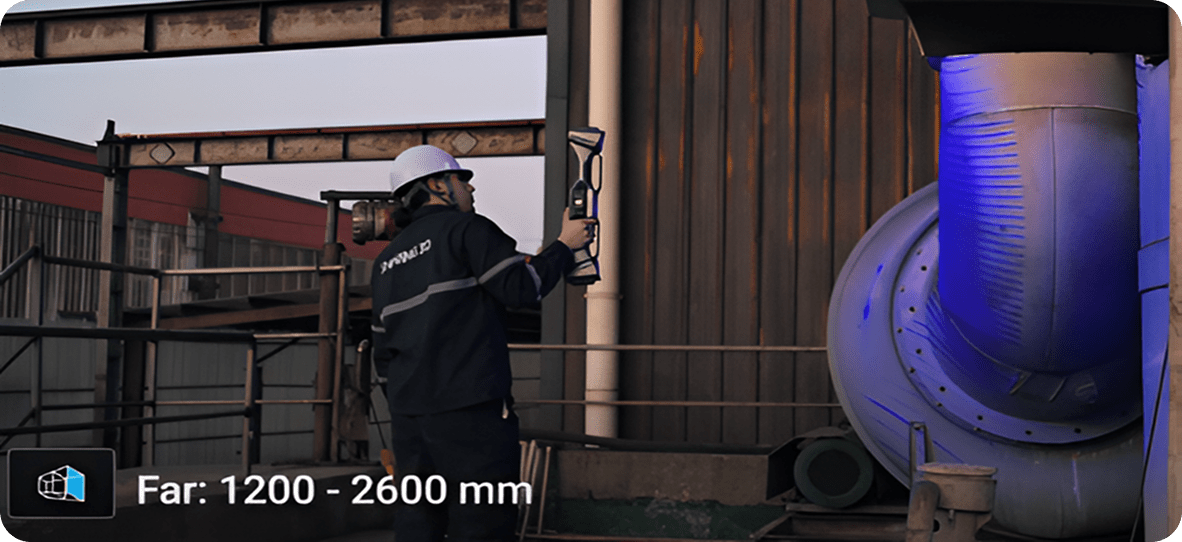

Far Mode (1200–2600 mm): Enables scanning of oversized structures and assemblies
Wireless 3D scanning with Enhanced Onboard
Capabilities
Integrated Wireless Transmission
Real-time wireless communication supports high frame rates and stable data streaming for untethered operation across the Scanner and the computer.

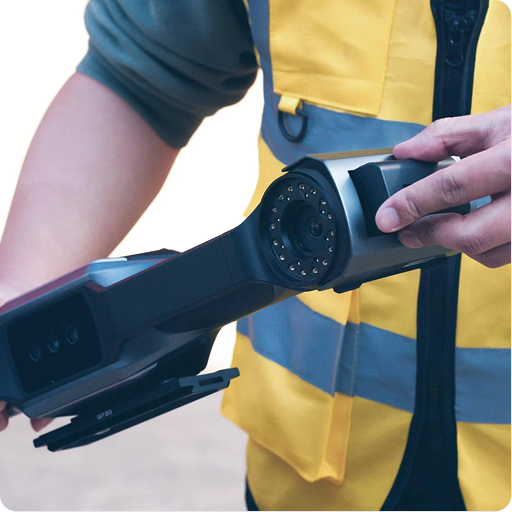

Swappable Battery System
Detachable, hot-swappable batteries provide continuous power for extended field work and remote site usage.

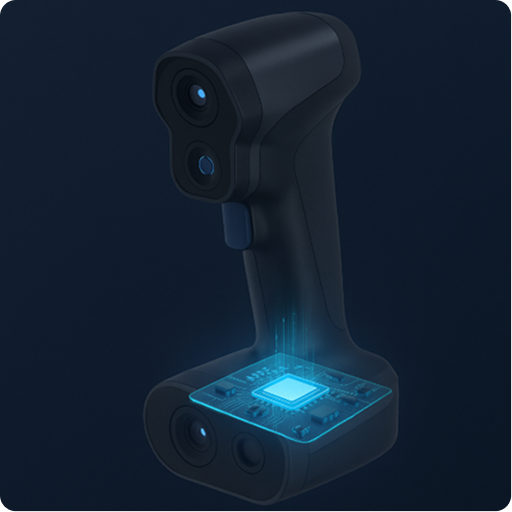

Built-In Computing Modules
The scanner has its own processors or chips inside. Some steps, like data pre-processing, Data collection, and noise filtering, are done internally, speeding things up.
Patented Video Photogrammetry with No Coded Markers Required
FreeScan UE Nova integrates video photogrammetry technology to enable marker-free spatial tracking, utilizing a calibrated reference rod to maintain system alignment and calibration throughout the scanning process. It achieves a volumetric accuracy of 0.072 + 0.012 mm/m without relying on coded targets, providing stable and repeatable results when capturing large-scale objects.
Buy FreeScan UE Nova from Precise3DM
At Precise3DM, we are an authorised master reseller for Shining3D metrology-grade 3D scanners. We offer an on-site POC demonstration of Freescan Track Nova in India. Once you become a user of Track Nova or UE Nova, you will be a premium customer of Precise3DM. We offer very good on-site training in two different phases, an SOP for scanner usage, and peace-of-mind warranty coverage. Our Goal is to equip our customers with the right 3D scanner for metrology applications..
FreeScan UE Nova Software
Advanced Software for Seamless 3D Measurement
Automatic Resolution Control
The system dynamically adjusts mesh resolution based on part curvature, improving clarity for fine features.
PTB-Certified Inspection Module
A certified inspection module is included for dimensional verification in full-scale metrology workflows.
Data Quality Monitoring
Operators receive real-time visual feedback on marker stability and scan completeness to guide data collection.
Material Compatibility
The scanner is compatible with common industrial materials, including black, polished, and high-reflectivity surfaces. No surface coating is required in most cases.
Technical Performance
Specifications
| Video Photogrammetry (VPG) | Included; does not require coded markers |
|---|---|
| Dimensional Accuracy | 0.072 mm |
| Volumetric Accuracy with VPG | 0.072 mm + 0.012 mm/m |
| Measurement Resolution | 0.5 mm to 10 mm |
| Scanning Speed | 4,600,000 points per second |
| Field of View (FOV) | Adjustable, up to 2600 mm × 2200 mm |
| VPG Field of View Indicator | Included |
| High-Speed Scanning Mode | Supported |
| Detailed Scanning Mode | Supported; optimized for near-field operation |
| Depth of Field | 300 mm to 2600 mm (maximum usable depth: 2300 mm) |
| Communication Interface | Wireless and wired operation; fiber optic supported |
| System Net Weight | 1.6 kg |
| Regulatory Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX |
| Accuracy Validation Standard | Verified per VDI/VDE 2634 Part 3 in ISO 17025-certified metrology laboratory |
FreeScan UE Nova Product , Case Study & Demo Videos
FreeScan Trak Pro2: A Brief Product Introduction
How the FreeScan Trak Pro2 Accelerates EV Battery Tray Inspection
FREQUENTLY ASKED QUESTIONS
Yes. The device supports Near Mode (300–800 mm), which enables scanning in narrow, confined areas without compromising detail.
Object size is scalable based on your computing capacity. Multiple scan sessions can be merged to cover very large structures.
No. Wireless transmission matches wired performance, supporting consistent data acquisition across both modes.
Yes. The system includes lens filters and design elements that allow stable scanning in outdoor environments.
