Introducing ''Transcan C'' is all about bringing your physical objects to digital with stunning detail, reproducing their colours and textures. A professional automatic turntable-based structured light 3D Scanner combined with a vibrant RGB 24-bit colour camera capturing the high colour and texture of the physical object. This scanner is super versatile, catering to a wide range of needs. Whether you're a design and manufacturing professional needing precise scans for product development, a teacher wanting to introduce 3D scanning to your students, or just someone eager to dive into 3D modelling as a hobby, the Transcan C has got you covered.it's portable and user-friendly making it perfect for any workspace or classroom.

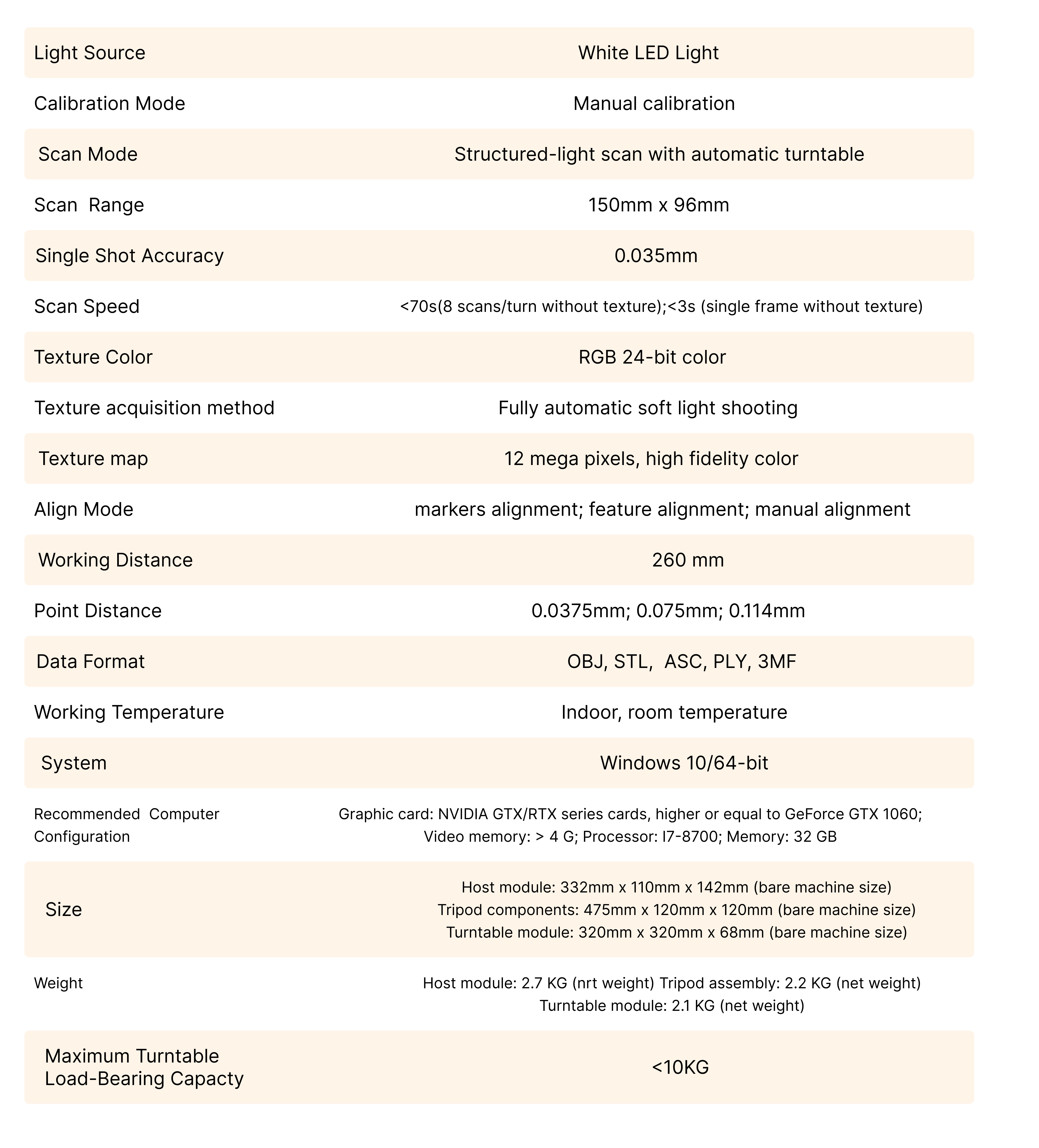

Technical Specifications

KEY FEATURES

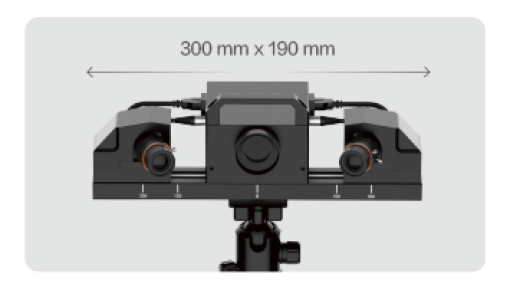

Adjustable Scanning Range

Easily switch between two scanning ranges (150 mm x 96 mm and 300 mm x 190 mm)
to accommodate objects of various sizes effectively.

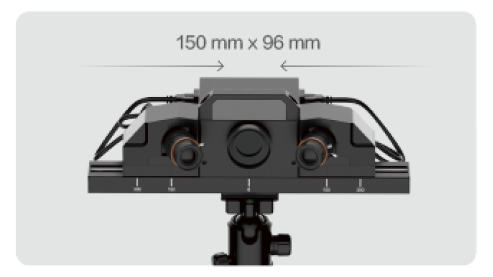

Inner Smaller Field of View
for scanning small objects

Outer Larger Field of View
for scanning medium large objects

Multi-Resolution Fusion

Seamlessly transition between three levels of resolution within a single project,
enhancing efficiency without compromising detail.

High Color Fidelity

Equipped with dual 12 MP professional color cameras, the Transcan C
captures rich, detailed color textures, providing an accurate representation of
the physical object.

High-Accuracy Scan Data

Achieve precision with an accuracy of 0.035 mm at the inner position and 0.05 mm at the
outer position, ideal for applications requiring precise measurements.

Micro Details Reproduction

Capture fine surface details with a minimum point distance of 0.0375 mm, ensuring
accurate reproduction of intricate features.

Intelligent Operation

Enjoy fully automatic scanning with the turntable and intuitive software
interface, streamlining the acquisition of 3D data without manual intervention.

Blog

EinScan H2 for Facial Prosthetic Applications
Read More
3D scanner for education: Why Einscan H2?
Read More
Why Choose Precise3DM to Buy Einscan H2?
Read More

What Our Client say!

Our users' feedback speaks volumes about the quality of our products

DEMO VIDEOS

Transcan C - High-Resolution Color
3D Scanner

Shining 3D Transcan C.

FREQUENTLY ASKED QUESTIONS

Transcan C uses structured white light scanning for 3d scanning of small and medium-sized objects.

Transcan C costs tentatively around 8000 USD including custom duty, import, warranty and post-sales support please contact Precise3DM for the latest offers and deals.

When it comes to tripod-type 3d scanners, especially for small and medium-sized objects with colour and good accuracy Transcan C is one of the cheapest and best 3D scanners in the market.

Transcan C is a structured light 3D scanner featuring dual scan ranges and an automatic turntable that sets it apart from other 3d scanners. Users don't have to change the lenses based on object size, it's adjustable in the scanner itself.

With its 3-level multi-resolution fusion algorithm, the scanner allows the transition between different levels of resolution within a single project. This optimization process ensures efficiency without compromising on detail, saving time and effort for users.

Absolutely! Equipped with dual 12 MP professional colour cameras, Transcan C captures rich and detailed colour textures, providing an accurate representation of the physical object. This feature enhances the overall quality and realism of the scanned data.

Transcan C delivers exceptional precision with an accuracy of 0.035 mm at the small FOV and 0.05 mm at the bigger FOV. This level of accuracy is ideal for applications requiring precise measurements, ensuring reliable and accurate results every time.

Yes, indeed! With a minimum point distance of 0.0375 mm, Transcan C excels at capturing micro details on the surface of objects. This capability ensures the accurate reproduction of intricate features, making it suitable for a wide range of applications.

Transcan C offers intelligent operation with fully automatic scanning facilitated by the turntable. Its intuitive software interface guides users through the scanning process, eliminating the need for manual intervention and streamlining the acquisition of 3D data.

Yes, shining has a great training manual if you want to self-learn the scanner and techniques. Do email Precise3dm for the user manual if you have purchased the 3D scanner from Precise3DM.

Yes, we offer post-sales support after purchase such as a complimentary onsite training user manual and training videos when buying the shining 3D scanner from precise3DM.
