Geomagic Design X is the Industry-leading software dedicated to Digital Reverse Engineering applications. Its comprehensive features enable CAD designers and 3Dexperts to use the 3D scan as a foundation to create history-based design intent and accurate as-built CAD and NURBS surfaces.

KEY FEATURES

Accuracy-of-EinScan-Pro-Series-Scanners-reverse-engineering
Plugin to 3D scanners

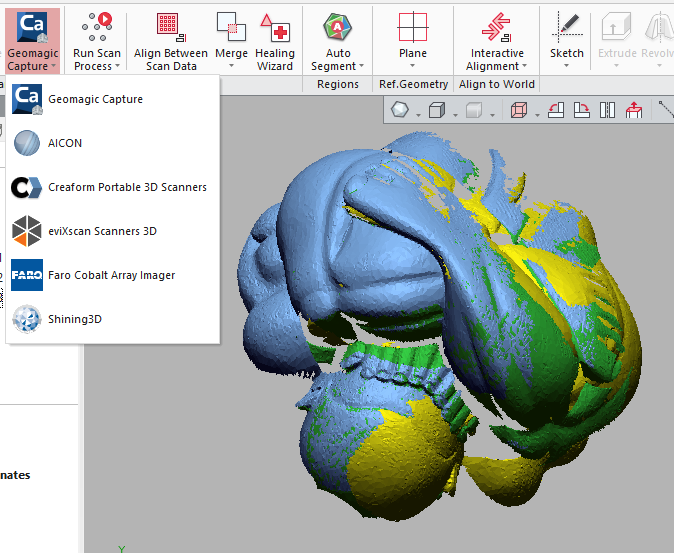

Exclusive plugin to connect 3d Scanners and portable arms to 3D Scan and probe features. Creates scan groups of different positions. Scan, align and combine them to a set of point clouds and convert the point clouds to mesh models.

Versatile-Scan-Modes-and-Align-Modes
Mesh Tools

Automatically heal all the mesh defects in one go, decimate down, enhance the detail and shape, instantly optimize and create a watertight mesh for direct use in 3D Printing, CAM, CAE or post 3D Scanning applications such as 3D Scan to Cad or 3D inspection.

Full-Color-Scan-reverse-engineering-geomagic-design-x
Powerful Mesh
Cross-Sections

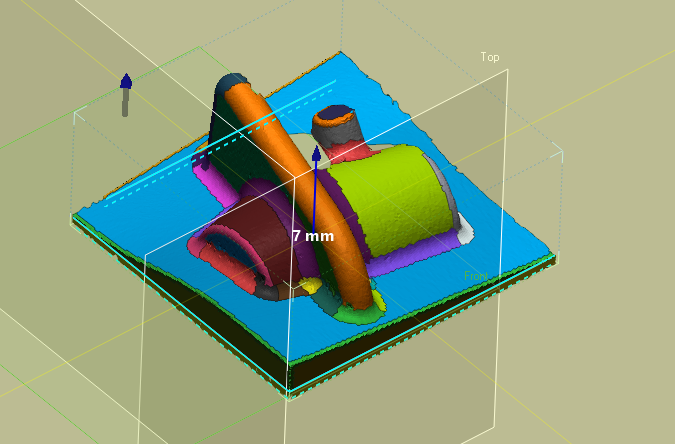

It is not just by a single plane but also by the volumetric box that brings the full mesh projection into the single plane, facilitating the extraction of lines, arcs, and even detailed sketch profiles.

New-Scanning-Software-EXSCAN-PRO
Auto-Extract
3D Features

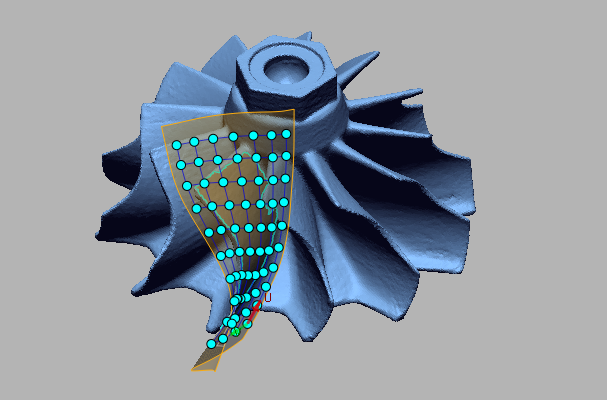

Extract CAD features intuitively and quickly from the 3D Scan. Traditional designers usually model the file in CAD software to design any object. Here you may use software intelligence to extract surface and solid features and modeling elements such as editable sketch, center axis, cross-section plane, and vectors.

Solid-Edge-SHINING-3D-Edition
Live Transfer

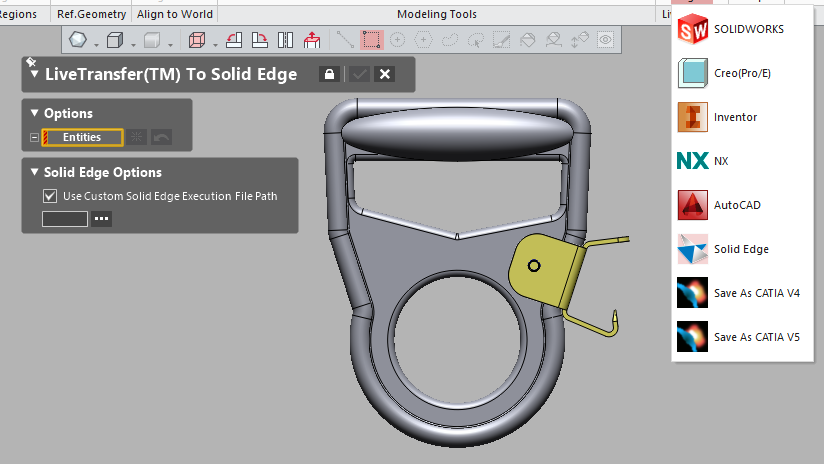

The robust functionality in Geomagic design X transfers all parametric CAD modeling features extracted from 3D Scan to any leading CAD software for any downstream applications. So designers can modify the design parameters in their CAD software to which they are comfortable.

Portable-and-User-friendly-Design
Ensure Quality

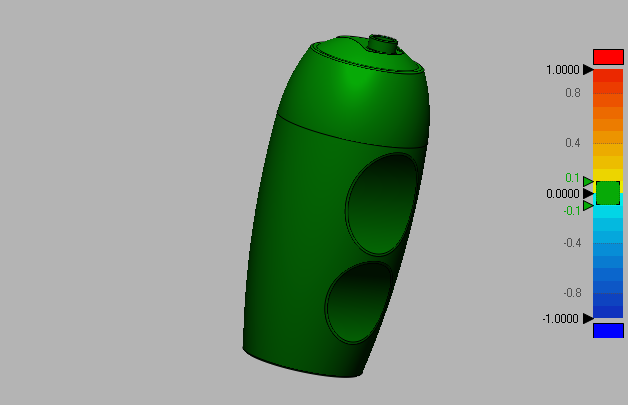

Instantly compare and validate the entire model, solid and surface features. Check how close the final model is digitally reverse-engineered from the 3D Scan, re-design them in Geomagic to improve the model within. User-defined deviation tolerances, by its intellectual function accuracy analyzer.

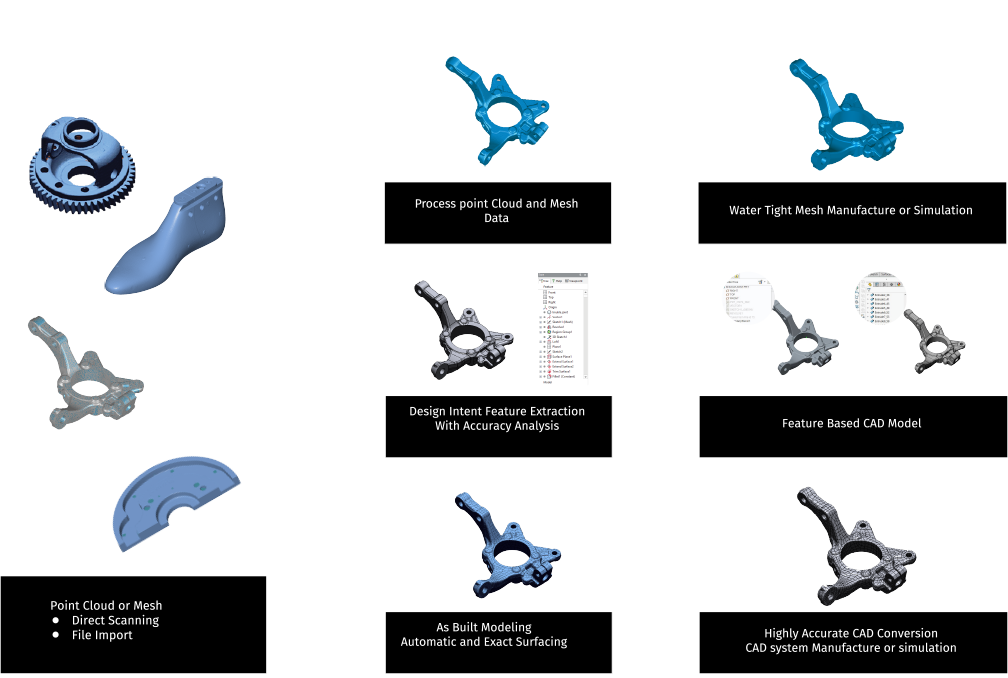

WORKFLOW

workflow-reverse-engineering-geomagic-design-x

Latest features in Geomagic Design X 2022

Geomagic Design X 2022 is launched with advanced features focused on modelling workflows to increase pathways for complicated designing, including revolved parts:

  1. Curve or Mesh has new selective surfacing features
  2. This update comes with brand new Unrolling, flattening and enrolling tools
  3. Geomagic Maintenance program now has preview tools
  4. Update native CAD file import along with PMI for most formats
  5. Improve File import functionalities
  6. The meshing function is provided separately in this version
  7. Improved extracted boundary curves

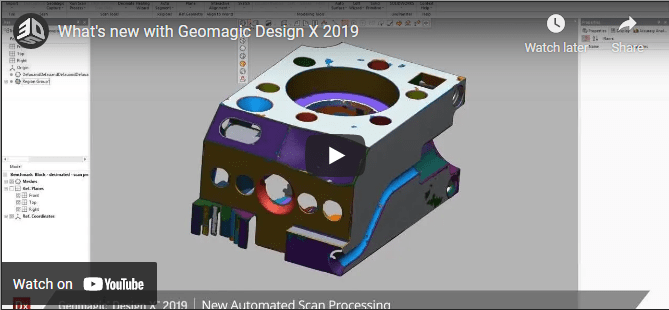

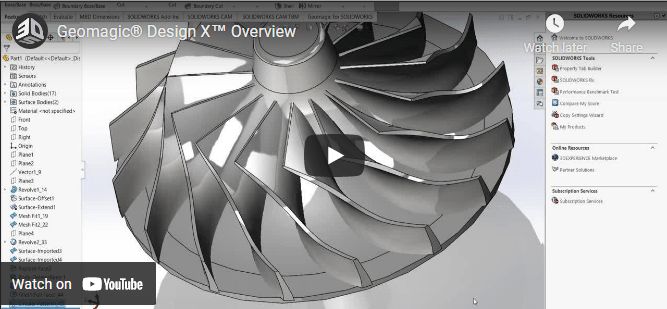

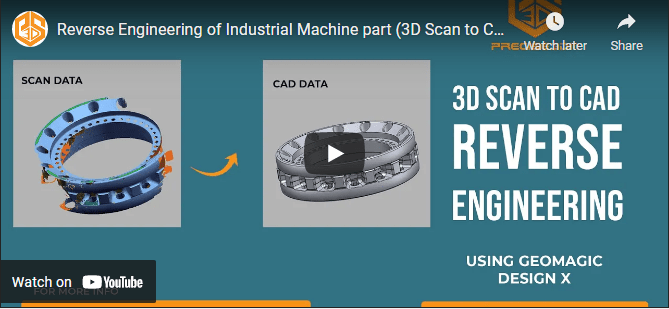

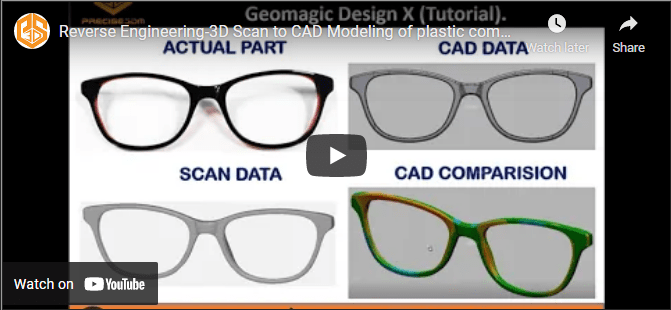

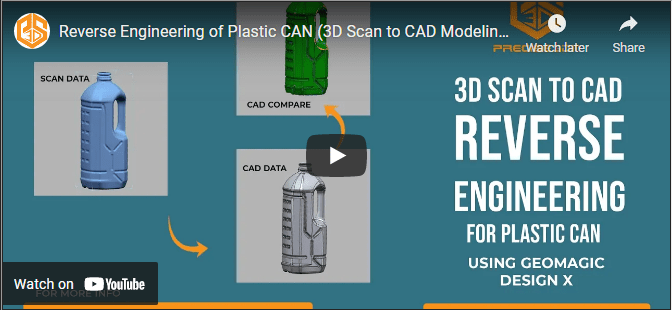

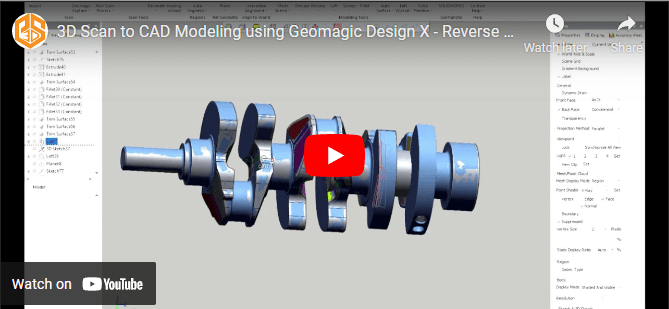

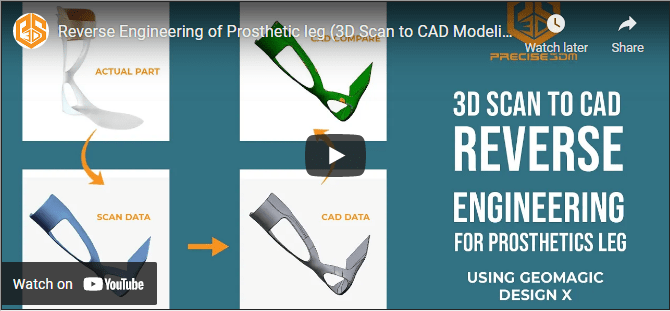

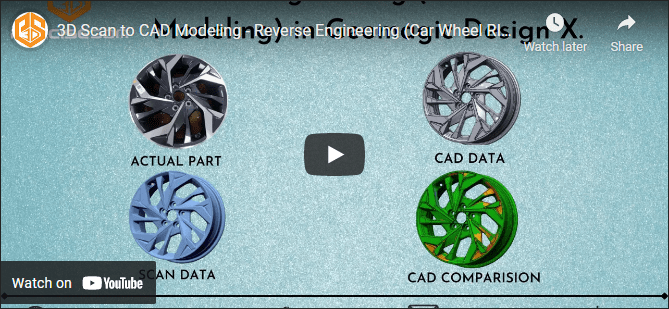

DEMO VIDEO

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

Geomagic Design

geomagic Design X -Industry-leading dedicated software for di

APPLICATIONS


Frequently asked questions

Is Geomagic software a perpetual or yearly subscription?

Geomagic software Design X, Control X wrap and Geomagic for Solidworks, all are one-time purchase perpetual license application, its not possible to rent or yearly subscribe Geomagic design x software.

Do I mandatorily update the Geomagic software AMC every year?

To receive frequent updates on Geomagic software, the user needs to go for AMC renewal every year. However, it is not mandatory to renew every year. Users can keep using the software version and updates launched during the AMC period.

What are the types of Geomagic licensing?

It has online activation, offline dongle, and network licensing.

Is Geomagic software a perpetual or yearly subscription?

Geomagic software Design X, Control X wrap and Geomagic for Solidworks, all are one-time purchase perpetual license application, its not possible to rent or yearly subscribe Geomagic Design X software.

What is the file format Geomagic Design X provides?

It provides CAD neutral formats such as IGES ,STEP ,SAT ,Parasolid files.

Where can I buy Geomagic Design X in India?

You can buy Geomagic software from 3dsystems software authorized resellers in India.

Who is an authorized reseller of Geomagic software in India?

We, Precise3DM one of the authorized distributor, a reseller of Geomagic software products in India

Can I create a drawing in Solidworks from a part that was reverse engineered Design X?

We can create the whole part with a structure tree hierarchy with a "Live Transfer" future in Design X for Catiav5, Catia v4, Creo, Solidworks, SolidEdge, and inventor.

What is Geomagic Design- X software?

Geomagic Design X is a comprehensive and dedicated reverse engineering design software. It enables us to create high-quality 3D scan data of a physical object, and then use the scan data to create parametric surface/solid CAD models.

What are the file formats I can import / export in Design X?

Design X can import over 60 file-formats, including point cloud, polygons, and CAD. It can export output data in neutral CAD (Iges , step , sat, PS) or polygon formats. The Live Transfer tool supports the export of history-based CAD data to native CAD programs.

Can I use Geomagic Design X files in my native CAD software?

Design X enables us to create and transfer full-history parametric designs to 7 native CAD programs like Solidworks, CATIA, NX, Creo, Inventor, AutoCAD, and Solidedge. However, you can not directly import DX files into the native cad formats, you need to use the live transfer function.

Why is using Geomagic Design X is better than any reverse engineering software in the market?

Accelerate your time to market with a 3-10x faster time to CAD. Manufacture accurate output models with a 15% increased total end-part accuracy. Reduce product development costs by modeling as built and as designed parts within less time and for less money.

What are the major application areas to use Geomagic Design X capabilities?

Product design and customization, Re-manufacturing and maintenance, Additive manufacturing, Casting, Sheet-metal stamping, and Prototyping are a few major application areas where Design-X- capabilities are being utilised in the mechanical industry.

What are the scanning Devices I can connect with Geomagic Design X?

Design X is equipped to operate optical 3D scanners, laser trackers, and PCMM arms using its Live Capture ability. Some of the major brands of 3D Scanners that can be operated are Creaform, Hexagon, FARO, Artec, Kreon, Zeiss, and others.

What are the minimum system requirements for Geomagic Design X?

Minimum system requirements for working with the Design-X are:
Operating System-Windows 8, Processor-2GHz clock speed 8GB of RAM, Space- 30GB HDD, Graphic Card-NVIDIA GeForce 900 Series or AMD RADEON 400 Series with 4GB Video Card RAM (GPU must support Open GL 4.0), Display-64-bit true-color with 1280x960 resolution.
*We recommend going for higher configurations to handle extensive scan data and better performance as per your applications.

How the Design X extracts the dimensions of the design from scan data?

Design X has sophisticated Sketch/Curve tools to extract sketch profiles and feature curves from mesh data. The smart dimensioning function will enable us to measure the dimensions from the sketch.

Can we check the accuracy of the CAD model?

Design X has a dynamic Accuracy Analyzer function for real-time deviation analysis. It enables us to check the deviation of Sketch/Curve/surface/solid data/Mesh data with respect to the original Scan Data at any instance of your design process.

Is it possible to do standard CAD modeling in Design X software?

Yes, you can do standard surface and solid CAD modeling in Design-X and change the interface according to your CAD programs for user-friendly operation of tools.
