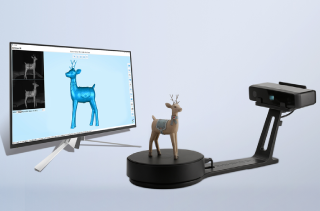

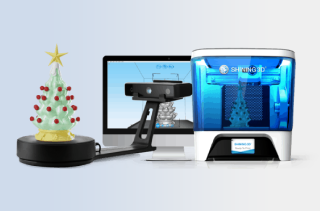

The EINSCAN-SE is mainly geared towards education.The Automated software provides plenty of capability for the user to scan and generate a CAD model for Printing. There is no need for further design or data preparation.
-(A).png)
Visible white light and no laser. Safe and secure for scanning of children.
-(A).png)

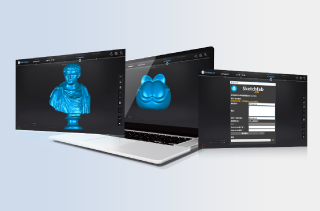

Every scan generates high-quality 3D data. Reconstruction of real geometry of the object with fine details.
-(A).png)
-(A).png)
-(A).png)

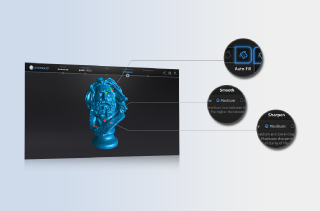

Software of EinScan-SE/SP has the functions of filling holes, smoothing, sharpening, and can also readjust the data coordinates in the post-processing process to provide perfectly organized 3D data for subsequent applications.
Scan Mode |
Fixed Scan |
Auto Scan |
|---|---|---|
| Mode of Alignment | Feature; Manual | Turntable; Manual |
| Single Shot Accuracy | ≤0.1 mm | |
| Minimum Scan Volume | 30 × 30 × 30 mm | |
| Maximum Scan Volume | 700×700×700 mm | 200×200×200 mm |
| Range of Single Capture | 200×150 mm | |
| Scan Speed | < 8 s | |
| Point Distance | 0.17 mm ~ 0.2 mm | |
| Texture | Yes | |
| File Format | OBJ, STL, ASC, PLY | |
| Camera Resolution | 1.3 Mega Pixels | |
| Light Source | White Light | |
| Stand-off Distance | 290 ~ 480 mm | |
| Computer Requirements (Required) | USB:1 ×USB 2.0 or 3.0; OS: Win7, Win8, Win10 (64 bit); CPU: Dual-core i5 ; RAM: 8G | |
| Computer Requirements (Recommended) | <Graphics card: Nvidia series;Graphics memory > 1G | |
| Weight (packed) | 4.9 kg | |
| Dimension | 570×210×210 mm | |
| Power Supply | 40 w | |
| Input Voltage | DC：12 v, 3.33 A | |
| Calibration Board | Standard | |
| Turntable | Standard | |
| Load Capacity of Turntable | 5 kg | |

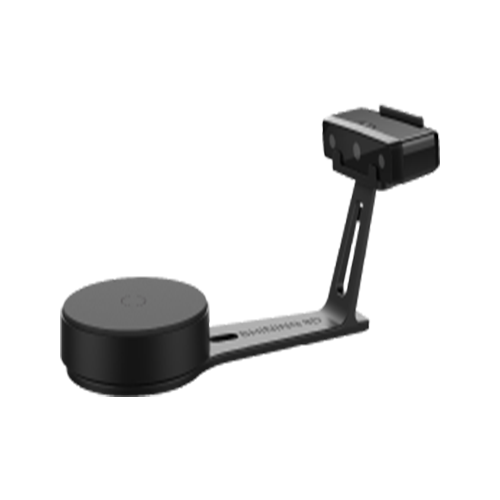

EinScan Desktop 3D Scanner
EinScan-SE 3D Scanner Setup Tutorial
EinScan SE is a desktop Scanner used by education and individuals for Scanning small parts maximum weight of 5 kg in which the turntable can hold and size lesser than the coded targets inside the turntable.
Einscan SE uses Structured white light Scanning technology.
It's not advisable to use EinScan SE in daylight conditions. Scanning in daylight conditions may result in excessive exposure to light. It affects the Scanner's accuracy and creates lots of noise while scanning due to the scattering of light over the object to be Scanned.
NO, we cannot do the color scan in EinScan SE.
