FARO FOCUSS S350
Perfect instruments for 3D Documentation and Surveying in AEC, Public Safety – Forensics and Product Design
GET A QUOTE NOW.png)
Perfect instruments for 3D Documentation and Surveying in AEC, Public Safety – Forensics and Product Design
GET A QUOTE NOW

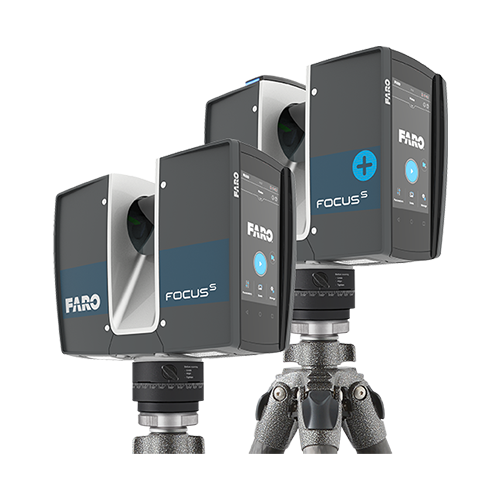

FARO’s latest ultra-portable Focus S Laser Scanner enables you to capture fast, straightforward and accurate measurements of complex objects and buildings. The intuitive touch-screen of the Focus S models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural color overlay to the scan data in extreme lighting conditions. Familiar traits such as lightweight, small size, and a 4.5-hour battery runtime per charge make the Focus S Laser Scanner truly mobile for fast, secure, and reliable scanning.
 (A).jpg)

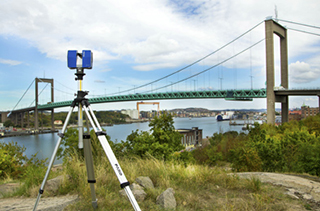

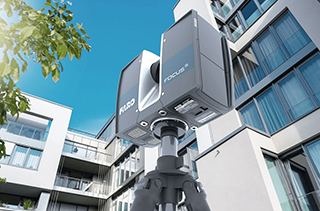

The Focus Laser Scanner Series provides the highest accuracy and ranges up to 350m by using a combination of the most advanced sensor technologies.
 (A).png)

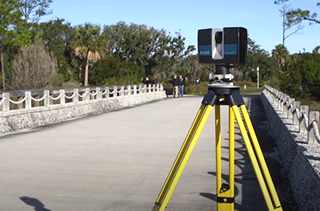

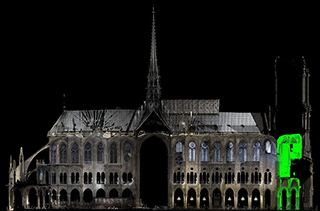

Document any project site or scene, whether indoors or outdoors, in bright sun or complete darkness in minutes. Customize settings to adapt to any scene and capture up to 976,000 points/sec.
 (A).PNG)
With the sealed design, the Focus devices are certified with the industry-standard Ingress Protection (IP) Rating and classified in class 54 against environmental influences. In addition, there is a scanning challenging temperature conditions due to an extended temperature range.
 (A).jpg)

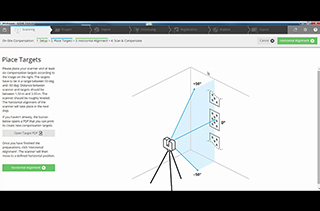

With the on-site compensation functionality, users can verify and adjust the Focus compensation on-site or in the office immediately before scanning, ensuring high-quality scan data and traceable documentation. A comprehensive compensation document is automatically generated.
 (A).png)

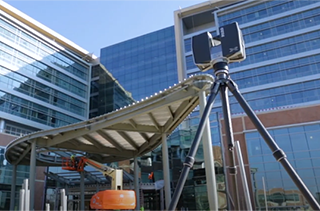

During on-site data capture, the laser scanner immediately transmits scanned data wirelessly to FARO SCENE for real-time scan processing and registration, providing efficiency and time savings.
 (A).PNG)

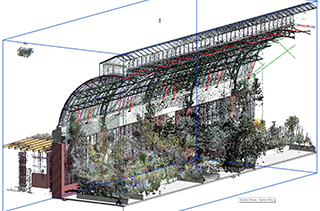

The Scan Group feature identifies multiple areas to be rescanned with higher resolution to either perform accurate target detection or to capture smaller areas of interest with greater detail.
 (A).jpg)
No need to redo the entire scans. Select the images to retake the photos in seconds.
 (A).PNG)

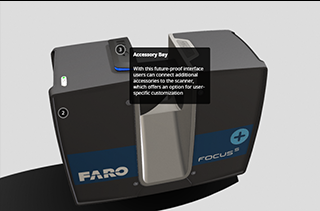

With this future-proof interface, users can connect additional accessories to the scanner, which offers an option for user-specific customization.
 (A).PNG)
Weighs only about 4.2 kg the Focus Laser Scanner is extremely mobile and portable.
 (A).PNG)

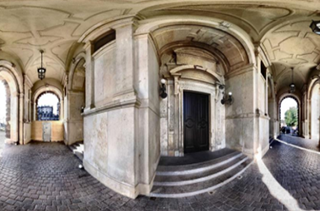

With the Focus HDR functionality, challenges like lighting situations will never subtract users’ scan results. Predefined HDR profiles increase the picture quality which is recorded in very bright or dark environments.
 (A).png)
The automatic digital hashing feature provides encrypted security to all raw scans by hashing data at the time of capture. Use the Scan Verification Tool to ensure that the scan files have not been altered in any way and data is unchanged since first captured.
 (A).PNG)

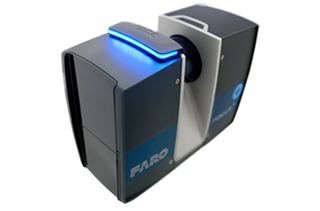

The visual indicator provides the operator the status of the laser scanner for improved on-site safety.
FARO FOCUS S 350 |
|---|
| Range FocusS 350: 0.6 – 350m |
| High Dynamic Range (HDR) photo recording 2x/3x/5x |
| Measurement speed: up to 976,000 points per second / up to 2 million points per second (350 Plus) |
| Ranging error: ± 1mm |
| Sealed design – Ingress Protection (IP) Rating Class 54 |
| On-site compensation |
| On-site registration (with FARO SCENE 2018) |
| Scan Group Feature (rescanning of distant targets in higher resolution) |
| Digital hashing function |
| Retake Photo Option |
| Accessory Bay |
| Angular Accuracy: 19 arcsec for vertical/horizontal angles |
| Integr. colour camera: Up to 165 mio. pixel |
| Laser class: Laser class 1 |
| Weight: 4,2kg |
| Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator |
| Size: 230 x 183 x 103mm |
| Scanner control: via touchscreen display and WLAN |
