3D Scanning and Inspection Software

Best 3D Metrology Software for your 3D Scanner

Setting the Standard in 3D Metrology Software

Accurate 3D scanning and Inspection are necessary for maintaining standards, minimising costs. Precise3DM is proud to bring the ultimate 3D metrology software: Geomagic Control X.

  • Compatible with all scanners and PCMM arm

  • Collect and analyse data with 7x the speed of CMMs

  • Automate repetitive tasks

Get a Quote / Book Demo
Email us

sm@precise3dm.com | sales@precise3dm.com

What is 3D Metrology Software?

3D metrology software is a powerful Application that helps 3D Scanner users perform 3D Inspection and dimensional analysis using 3D scan data. The software works with 3D scan data or connects with 3D scanners that users can use to 3d scan objects, capturing their digital shape. The software then compares the shape of the real object with the CAD design, which is usually made before manufacturing. If the object has any shape and dimensional errors or differences from the design, the software helps point them out. Here are the processes that 3D metrology software helps to complete:

Step-by-Step Workflow for 3D Metrology and Inspection Software

  • Import Data

    • Import the Test Scan Data or 3D Scan: STL, ASC,PLY, or mesh file from the 3D Scanner.

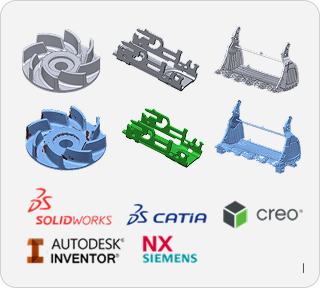

    • CAD Data: Native or neutral CAD formats (STEP, IGES, etc.)

    • Ensure correct alignment of units and coordinate system.

  • Preprocess the Mesh

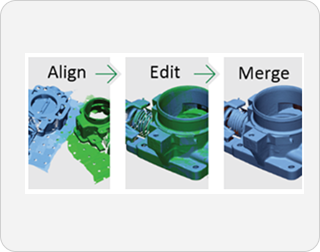

    • Clean up scan (remove noise, fill holes, smooth)

    • Optimise the mesh if needed

  • Align Scan to CAD

    • Initial Alignment: Manual or best-fit alignment

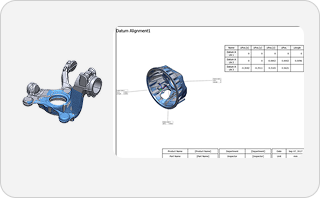

    • Refined Alignment: RPS, 3-2-1, or datum-based alignment

  • Define Inspection Features

    • Extract features (planes, cylinders, holes, etc.)

    • Create datums if necessary.

    • Add tolerances per GD&T or design requirement.

  • Perform Inspection

    • Compare the scan to CAD

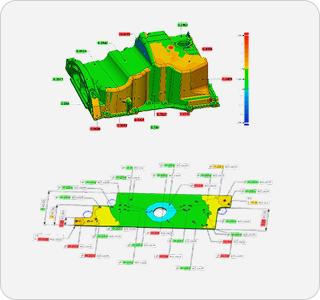

    • Generate deviation colour maps

    • Measure 2D/3D dimensions, angles, flatness, roundness, etc.

    • Identify pass/fail conditions.

  • Create and Customise Reports

    • Add annotated views, results tables, and charts

    • Insert company logo,

    • Export as PDF, Excel, or HTML

Use of 3D Metrology Software in Inspection and Scanning

Precision Inspection

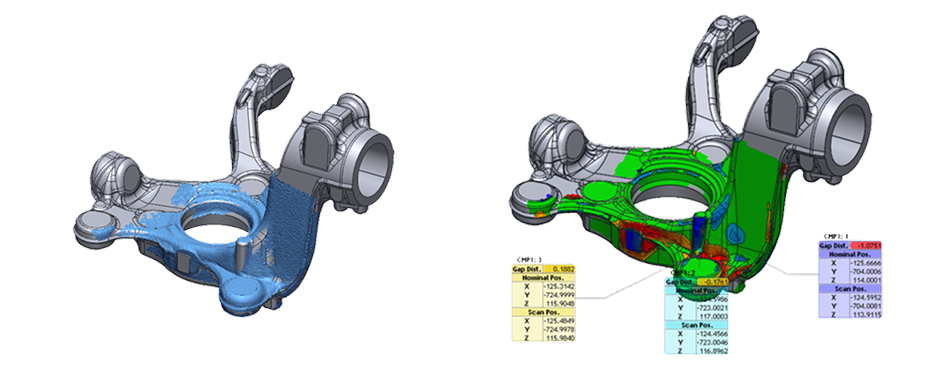

3D metrology software inspects parts to ensure they are manufactured to exact specifications. The software compares the scanned data to the digital model (CAD) to detect any deviations or inconsistencies. These deviations can be dimension differences, surface irregularities, or feature misalignment.

In-Process Inspection and Quality Assurance

3D metrology software is also used for in-process Inspection during manufacturing, ensuring that parts are consistently produced to specification at every stage of the process. Like, instead of waiting until a product is finished, 3D scanners and metrology software allow manufacturers to inspect parts in real-time, even on the production line.

Integration with CAD and CAM Systems

Modern 3D metrology software seamlessly integrates with CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) systems, providing a closed-loop inspection process. The software compares scanned data with digital models. The results are fed back to the CAD/CAM systems, ensuring adjustments to the design or manufacturing. This integration catches design flaws before production begins, so any errors during manufacturing can be corrected early.

Get the Best 3D Metrology Software For your 3D Scanner From Precise3DM

We are a leading 3D scan-based solution provider offering 3D scanner equipment and Geomagic software for manufacturing company capex investment. For 3D Inspection, we have Geomagic Control X, which is the industry standard for 3D metrology software. Here are its key features:

Intuitive and modern user interface for smooth navigation.

Compatible with a wide range of 3D scanners and portable metrology devices.

Advanced alignment options including best-fit, datum, and 3-2-1 alignment.

Direct import and comparison with native CAD models (SOLIDWORKS, CATIA, Siemens NX, etc.)

Powerful scripting and macro tools to automate repetitive inspection tasks

Tools for 2D and 3D analysis, including surface comparison, deviation maps, cross-sections, and GD&T (Geometric Dimensioning and Tolerancing).

Know more

Why choose Precise3DM?

We have been a proud distributor of Geomagic software since 2015. As their Golden partners, we bring the necessary expertise to implement and successfully succeed with Geomagic software solutions. Here’s what makes us distinguished:

  • Completed over 300+ 3D scanners and Geomagic software successful installations

  • PAN-India support for installation and training

  • Offer competitive pricing, authorised licenses, and direct access to the latest updates

  • On-site consultation and live demonstrations Start a free trial today!

Start a free trial today!
