What is 3D Reverse Engineering?

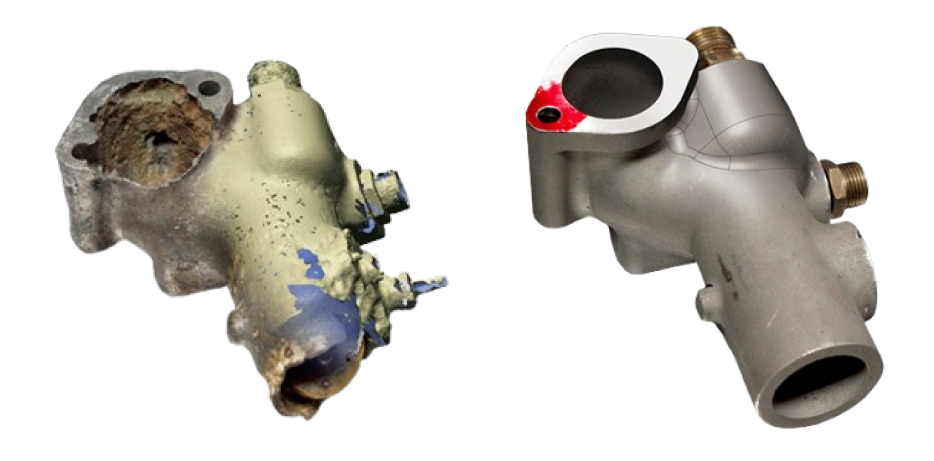

Reverse engineering is the term used to create re-engineering of any physical object, instrument, or vehicle, which is already engineered and existing in the market. Reverse engineering starts by measuring the physical object and creating the CAD model for engineering purposes, whereas 3D reverse engineering is, instead of physically measuring the object or vehicle, the user uses advanced equipment like a 3D scanner to digitize the physical object and then uses the 3D scan as a reference to create the 3D CAD model. The process of converting a design from the 3D scan data to CAD data using dedicated reverse engineering software is called 3D reverse engineering.

In scenarios where no original design files or blueprints exist, reverse engineering becomes essential. The 3D scanners and reverse engineering software allow a manufacturer to create parametric CAD models, NURBS Surfaces, and Solid Models from the scanned mesh or point cloud data of the physical object.

How is 3D Reverse Engineering Software Different from CAD Software?

3D reverse engineering software differs from CAD software in its primary purpose and workflow. It is used to extract design intent from existing physical objects and create a 3D model from scanned data.

However, CAD software is used to create and modify 3D models from scratch. Dimensions, constraints, and relationships are the inputs for designing 3D models or 2D drafting and detailing.

CAD software is used when you need to design a brand-new part digitally. However, 3D Reverse Engineering software is used if you have an old physical object and want to create a digital version of it.

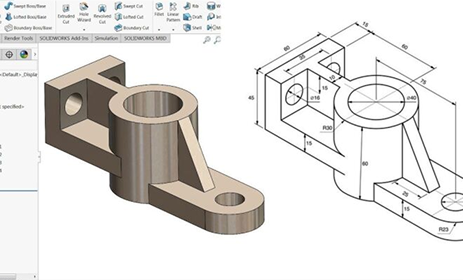

CAD

Design from Scratch

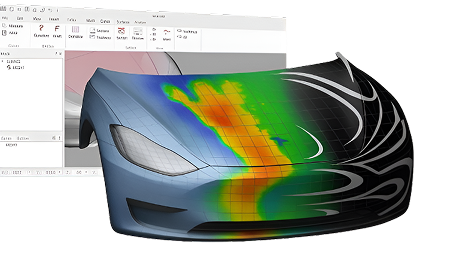

Reverse Engineering Software

Design from the 3D Scan Data

Buy 3D Reverse Engineering Software As Per Your Application and Budget.

We are a proud and authorised reseller of Geomagic Software by Hexagon, the global OEM behind the world's leading 3D reverse engineering software. We offer industry-leading software solutions that precisely convert 3D scan data from any scanner into a precise CAD model.

Know More

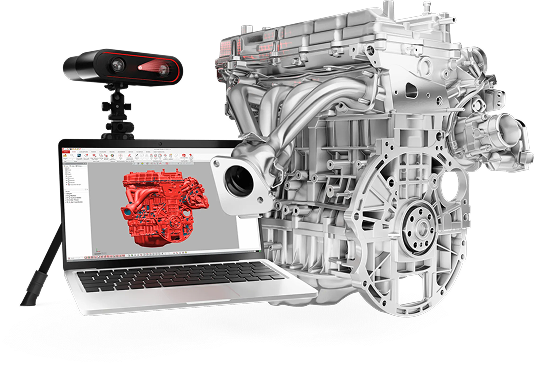

End-to-End Parametric
3D Reverse Engineering

Geomagic Design X is a professional-grade reverse engineering software that converts 3D scan data, including point clouds and meshes, into fully editable, parametric CAD models with a design history. To cater to different users' needs, it has three distinct versions, and you can get any one of them from Precise 3DM: If you're just starting with 3D scanning or your projects don’t require highly detailed CAD reconstruction, Design X Go gives you the essentials, without extra complexity or cost. It provides the basic mesh editing tools like smoothing, reducing file size, and aligning scans. It helps in creating simple 3D models from scans using direct surface fitting tools.

Design X Plus is perfect if you're regularly working with moderately complex parts and want more control over every step of the modeling process. It features more advanced mesh editing and segmentation tools, and even supports hybrid modelling, which combines mesh, surfaces, and solids. It allows exporting to major CAD softwares, like SolidWorks and Creo.

If you're working in demanding industries where accuracy and design control are critical, Design X Pro gives you everything you need, from scan to final CAD file. It supports all the features available in the Go and Plus versions, and it also features full parametric modeling with a history tree, just like building a part from scratch in CAD. It has automation tools to speed up feature recognition and modeling.

Know More Start Free trial

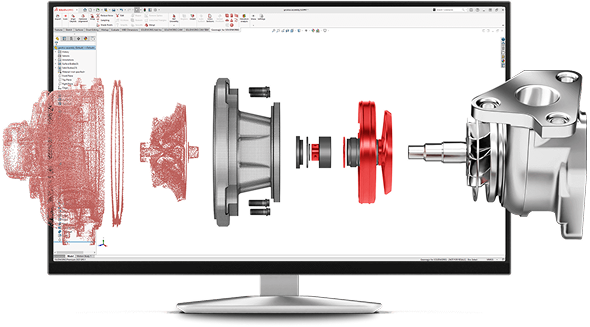

3D Scan to Parametric CAD Reverse
Engineering in Solidworks

Unique plugin for 3D Reverse engineering that integrates seamlessly into theSolidWorks user interface. It allows users to create CAD models directly from 3D scan data within the SolidWorks environment.

Best For: SolidWorks users who want to work directly with scan data inside their existing CAD environment.

Know More

Key Features of Geomagic Software Products For Reverse Engineering

Geomagic software tends to be on the premium end of the pricing spectrum. These solutions are designed for professional and industrial-grade applications, so the cost reflects their advanced capabilities. However, Geomagic Software is available through annual subscription and one-time purchase perpetual options. This significantly reduces the costs involved with the investment. This flexible licensing model helps reduce upfront costs and allows companies to scale their investment according to their usage needs. Here’s what makes Geomagic worth investing in:

End to end scan to CAD

With Geomagic, from the 3D scan, you can do mesh modeling, NURBS creation, and parametric solid modeling

Hybrid modeling

Accurately reverse engineer even complex, freeform, or organic parts through hybrid modeling.

Live Transfer

Using Live Transfer, after recreating the part, all the parametric history, such as sketches, 3D features ,are sent directly and intelligently into your CAD software like SolidWorks or Creo, so you don't have to redo everything manually.

Parametric History

Comes with a full design history and parametric control to make easy design modifications

Powerful Yet User-Friendly

Whether you’re creating CAD models from 3D scans, performing 3D inspections, or working on organic modeling, Geomagic software streamlines your workflow and saves valuable time. Its powerful, purpose-built tools enhance every scan-based process, delivering unmatched efficiency and making complex tasks faster, easier, and more accurate.

Why choose Precise3DM?

We have been a proud distributor of Geomagic software since 2014. As their Golden partners, we bring the necessary expertise to implement and successfully succeed with Geomagic software solutions. Here’s what makes us distinguished:

Completed over 300 successful installations
PAN-India support for installation and training
Offer competitive pricing, authorised licenses, and direct access to the latest updates
On-site consultation and live demonstrations

Precise3DM: Your One-Stop Solution
for Reverse Engineering?

With over 15 years of expertise, Precise3DM is your trusted partner for delivering end-to-end 3D reverse engineering services and solutions at highly cost-effective rates.To help you evaluate the results before committing to a software purchase, we also offer an OPEX (operational expense) model. You can take advantage of our reverse engineering services in two simple ways:

If you already have 3D scan data, email them to service@precise3dm.com, and we’ll convert them into accurate CAD models.
If you have a physical object and no scan data, we can handle the complete 3D scanning and reverse engineering process for you.

3D scanning and Reverse engineering services.
