Hybrid LED & Infrared Light Source Handheld Color 3D Scanner


With the strength of technical accumulation on 3D vision technology in more than a decade, SHINING 3D is now introducing its newly developed handheld 3D Scanner, EinScan H. Based on hybrid structure light technology of LED and invisible infrared light, EinScan H is making human face-scanning more comfortable without strong light. With a built-in color camera and large field of view, EinScan H provides high-quality 3D data in full color, ready-to-use in minutes.

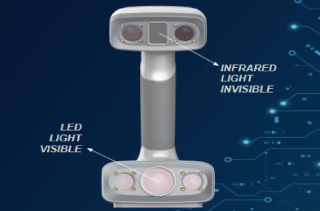

Infrared & Structured Light Hybrid light source

Hybrid structure light source technology integrating LED structured light and invisible infrared light into one device and adding advanced smart presetting in different scan modes. Allows 3D Scanning in a wide range of applications which requires portable 3D Scanning technology.

The era of scanning with Hair Acquisition

The invisible infrared light source provides a reliable solution to the problem of acquiring dark-colored objects and enables an easy acquisition of human hair.

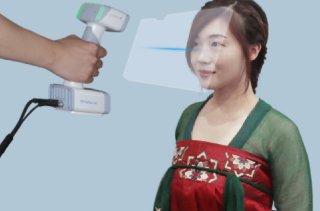

Invisible light 3D Scanning experience

The new face-scanning mode adopts invisible Infrared light enabling a safe and comfortable scanning process.

Fine Details

Impressive high resolution reaches 0.25 mm, EinScan H captures the full geometry of objects such as artwork or furniture with fine details. The high accuracy of scanned data up to 0.05 mm and volumetric accuracy of 0.1mm/m improves the precision of 3D modeling allowing a dense points cloud and/or polygon meshes.

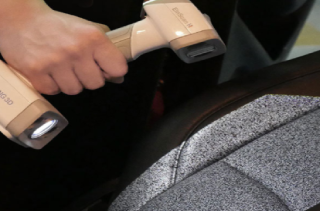

Fast Scanning

Scan speed up to 1,200,000 points/second and large scan FOV of 420*440 mm ensures fast 3D Scanning of large-size objects. The optimized alignment algorithm enables efficient alignment despite the small movements of the scanned object or person.

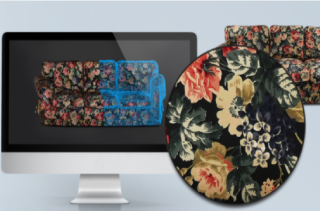

Full-color reproduction

The built-in color camera supports full-color texture capturing and tracking by texture.

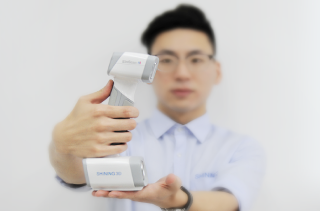

Portable & easy operation
  • The software is intuitive and user-friendly. Easy operation for professional users and beginners are alike. Easy to own and easy to use.
  • Weight - 703 g


Scan Mode

Standard Scan

Body Scan

Face Scan

Light Source White Light, visible White Light, visible Infrared light, invisible
Safety LED light(eye-safe) LED light(eye-safe) CLASS І (eye-safe)
Scan Accuracy Up to 0.05mm Up to 0.05mm Up to 0.6mm
Volumetric Accuracy* 0.05+0.1mm/m 0.05+0.1mm/m /
Scan & Align Speed 1,200,000points/s, 20FPS 1,200,000points/s, 20FPS 720,000points/s, 20FPS
Camera Frame Rate 55FPS
Align Modes Markers Alignment、Feature Alignment、Hybrid Alignment、Texture Alignment Feature Alignment Feature Alignment
Working Distance 470mm
Depth of Field 200-700mm 200-700mm 200-1500mm
Maximum FOV 420mm*440mm 420mm*440mm 780mm*900mm
Point distance 0.25mm-3mm 0.5mm-3mm 0.5mm-3mm
Built-in Color Camera Yes
Color Scanning Support
Connection Standard USB3.0
Output Formats OBJ;STL;ASC;PLY;P3;3MF
Dimensions 108mm*110mm*237mm
Weight 703g
Operating Temperature Range 0-40℃
Operating Humidity Range 10-90%
Certifications CE,FCC,ROHS,WEEE,KC
Recommended Configuration OS:Win10,64 bit;Graphics card: NVIDIA GTX/RTX series cards,higher or equal to GTX 1080;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB



3D Digitizing Solution


Frequently asked questions

What kind of technology is used in the EINSCAN H scanner?

EinScan H is based on hybrid structure light German technology that uses LED and invisible infrared light.

Which country makes the EINSCAN H scanner?

This hybrid EINSCAN H scanner is designed in Germany and made in China.

What is the range of scanning in the EINSCAN H scanner?

Impressive high-resolution EinScan H captures the full geometry of objects such as artwork or furniture with fine details. The high accuracy of scanned data is up to 1 meter.

What are the advantages of the EINSCAN H scanner?

Impressive high-resolution EinScan H captures the full The built-in color camera in the EinScan H scanner supports full-color texture capturing and scan black color objects too.

The software is intuitive, user-friendly, and easy to operate.

It can also be hand-held and uses turn-table codes too.
