FREESCAN UE11

Simple High Precision Metrology Scanner

BOOK A DEMO GET A QUOTE

FreeScan UE11 is the Blue laser handheld 3D Scanner of the FreeScan series, inherits the iconic features of "high precision" and "stable repeatability". At the same time ergonomic and lightweight equipment design, make it easier to hold and operate, providing metrology-grade, high-precision inspection solutions for the automotive, transportation, aerospace industry, molding inspection, energy generation, machinery manufacturing, etc.

KEY FEATURES

3D-Blue-Laser-Wireless-Scanner-Freescan-UE11
Metrology-class high precision

Accuracy up to 0.02mm, volumetric accuracy of 0.02mm+0.04mm/m.

3D-Blue-Laser-Wireless-Scanner-Freescan-UE11
Stability of repetitive measurement

When measuring the same workpiece repeatedly, FreeScan UE delivers consistent results, proving stability and reliability.

3D-Blue-Laser-Wireless-Scanner-Freescan-UE11

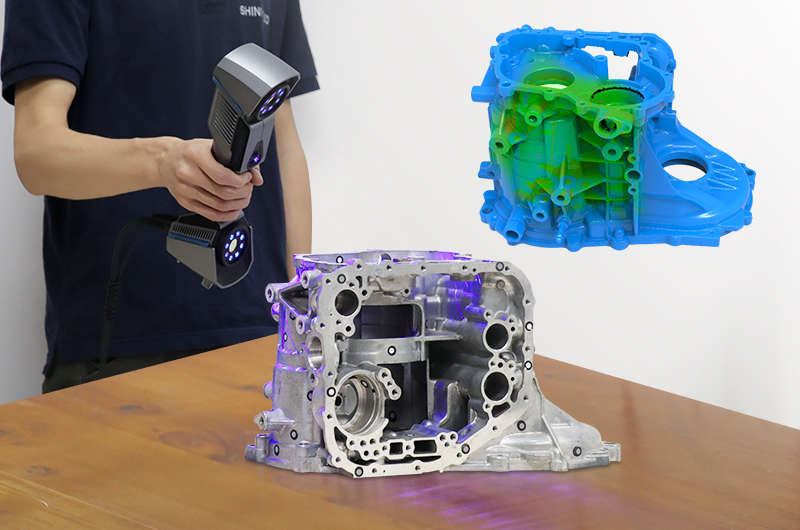

Portable and light weighted

The device weighs only 670g, facilitating handheld scanning more easily and avoiding fatigue due to long working time.

3D-Blue-Laser-Wireless-Scanner-Freescan-UE11

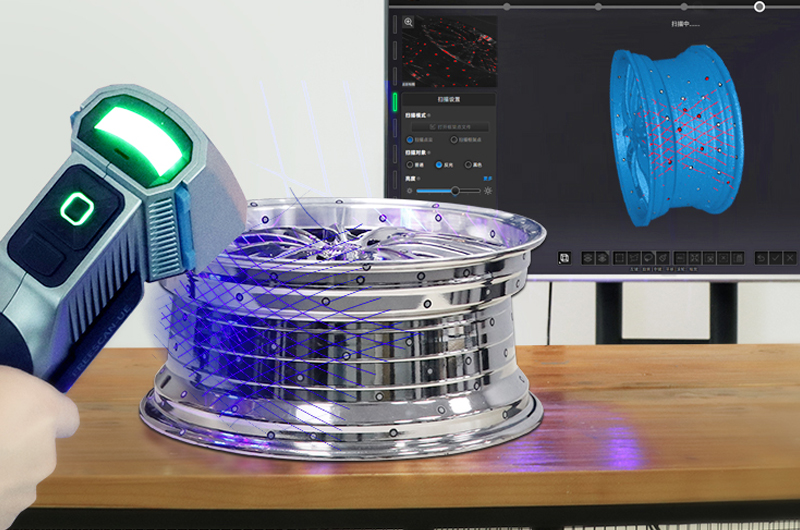

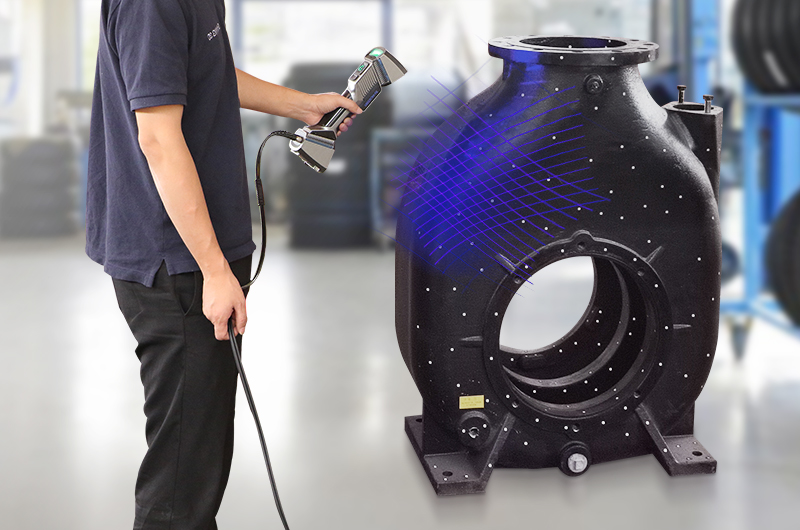

Wide range of material adaptations

Supporting the scan of black and reflective surfaces to accommodate a wide range of scanning applications.

3D-Blue-Laser-Wireless-Scanner-Freescan-UE11
High efficiency

The scan area can reach up to 510*520mm, providing a larger field of view for a smooth and more efficient scanning experience.

3D-Blue-Laser-Wireless-Scanner-Freescan-UE11
Easy operation

User-friendly operating system with simple software setup and guidance through the whole workflow process, allowing users to master the operation at ease.

3D-Blue-Laser-Wireless-Scanner-Freescan-UE11
Seamless docking to inspection software

The scan data can be imported into inspection software like Geomagic Control X, Verisurf Inspect, and Einsense Q with one click, increasing the inspection efficiency.

SPECIFICATIONS

Product Model

Free Scan UE11

Scan Mode Multiple Lines Scan, Single Line Scan
Scan Accuracy Up to 0.02mm
Volumetric Accuracy 0.02+0.04mm/m
Scan Speed 1,020,000 points/s (UE11)
Working Distance 500mm
Max. Scan Depth 300mm-700mm
Max. Scan Range 510mm*520mm
Special Distance between Points 0.05mm-3mm
Light Source 22 lines+1 line blue laser ray (UE11)
Light Category Class 2M (eye safe)
Transmission Mode USB 3.0
Volume 298mmx90mmx74.5mm
Weight 670g
Working Temperature 0-40℃
Working Moisture 10-90%
Powering 12V,5.0A
Wireless Function optional
Certification CE,FCC,ROHS,WEEE,KC
Inspection Module EINSENSE Q 3D digitized inspection software (optional)
Recommended Computer Configuration System:Win10,64;Graphics Card:NVIDIA Series,GTX1080 and higher;GPU Memory:≥4G;Processor:I7-8700;Memory:≥32GB
Note Volumetric accuracy is the relationship between the accuracy of the 3D data and the size of the object, with a reduction in accuracy of 0.04 mm per 100 cm. The standard above is determined by measuring the sphere centre distance by splicing the marker points.

DEMO VIDEO

FREESCAN UE

FREESCAN UE

SAMPLE DATA

Frequently asked questions

What is the technology behind Freescan UE11?

Freescan UE11 is a blue laser handheld metrology-based scanner that has high precision and stable repeatability.

A laser Handheld scanner is a shop floor 3D scanner that can Scan black and shiny surfaces in harsh environments, wherein the case of a structured light scanner is not possible and it also needs a lab setup.

Freescan UE11 has an accuracy of over 0.02 with a resolution of 0.05 mm and a speed of 10,20,000 points/sec perfect for scanning large parts with high accuracy.

Laser light which has been used in Freescan UE11 is harmless to human eyes and comes with a Class 2M certificate.
