The Einstar 3D Scanner is a portable, easy-to-use handheld device that delivers high-precision 3D scanning with rich color detail. Equipped with advanced imaging technology, it captures accurate, textured 3D data quickly and efficiently, making it ideal for applications such as product design, education, art, and digital archiving. Its lightweight design and intuitive software ensure a smooth scanning experience for both beginners and professionals.
| Scan Mode | Structured Light Scan | Point Distance | 0.1 mm ~ 3 mm |
|---|---|---|---|
| Light Source | Infrared VCSEL structured light | Working Distance | Effective: 160mm–1400mm Optimal: 400mm |
| Depth of Field | 160–1400mm | Maximum FOV | 434mm × 379mm |
| Scan Speed | 980,000 points/s, up to 14FPS | Align Modes | Feature, Hybrid, Texture, Global Markers |
| Safety | Eye-safe | Texture Scan | Yes |
| Interface | USB 2.0 or above | Outdoor Scanning | Yes |
| Output Formats | OBJ; STL; PLY; P3; 3MF | Scanner Size | 220mm × 46mm × 55mm |
| Body Weight | 500g | Carrying Case Size | 245mm × 245mm × 90mm |
| Operating Temperature Range | 0–40°C | Operating Humidity Range | 10–90% |
| Recommended Configuration | OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB OS: MAC； Apple Silicon: M1 Pro or higher (8-core GPU or more)； RAM: 32GB or more； USB: 2.0； OS: macOS Ventura 13 or newer |
||
| Certifications | CE, FCC, ROHS, WEEE, KC |
Einstar is a portable, budget-friendly 3D scanner from Shining 3D that uses advanced VCSEL infrared structured light to capture accurate, high-quality 3D data of objects, people, and scenes. It's ideal for beginners, hobbyists, and professionals.
Yes. Einstar utilises eye-safe infrared light, making it comfortable for full-face and body scanning for 3D printing, medical device modelling, and various animation applications.
Yes. Einstar handles challenging materials, such as shiny metal or dark objects, and even hair in the human body.
Einstar comes with complimentary 3D scanning and post-processing software called EXStar , for real-time scanning, mesh optimisation, and direct export to STL, OBJ, and PLY.
From Einstar 3D Scanner, you can export STL, OBJ, and PLY, compatible with popular scan to CAD and 3D printing software.

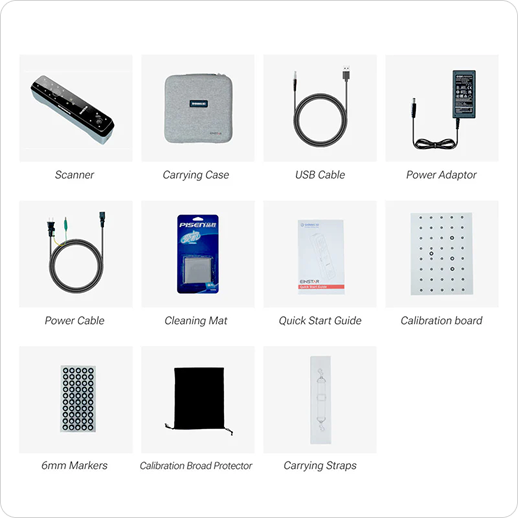

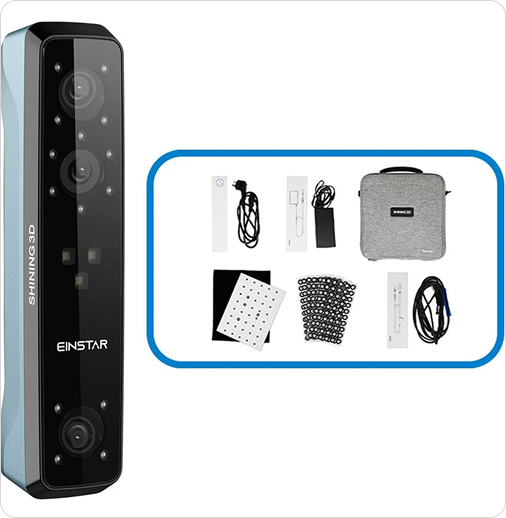

You get the Einstar scanner, USB cable, tripod, power adapter, calibration board, carry case, quick start guide and free EXStar software.
Simply click "Buy Now" on our website, choose your payment option, and complete the checkout. You'll receive an order confirmation instantly from Precise3DM.You can also email sales@precise3dm.com to place your order.
Yes. Our payment gateway uses SSL encryption and trusted payment processors to ensure your transaction is safe.
Currently, all our online orders are processed via secure online payment methods. Contact our sales team at sales@precise3dm.com, sm@precise3dm.com, or call us at +91 9840478347 if you need alternative arrangements. We also offer cash on delivery and payment terms for reputed businesses.
Orders within India are typically delivered in 3–7 business days, depending on your location.
Yes. Every online purchase of einstar and Einstar vega includes free remote onboarding and software and hardware training to help you get started immediately.
Einstar comes with a 1-year premimum warranty plus full local support from Precise3DM. This warranty can be extended up to 3 more years opn demand.
You can reach Precise3dm sales team via phone or whats app on +91 9840478347 / 6374406179 , or email us at sales@precise3dm.com or sm@precise3dm.com or contact us form on our website for instant assistance on procurment and technical clarifications.
