EinScan Rigil
Tri‑Mode Laser 3D Scanner
Triple Work Modes: Standalone | Wireless PC | Wired PC
Dual Light Source (Blue Laser + IR VCSEL)
Marker‑Free Laser Scanning
Full Wireless Workflow
Email us
sm@precise3dm.com | sales@precise3dm.com
Rapid, Refined, Reliable
Triple Work Modes
Dual Light Sources
Marker-Free Laser Scanning
Full-Wireless Workflow
Powerful Hardware
Dynamic Laser Switching

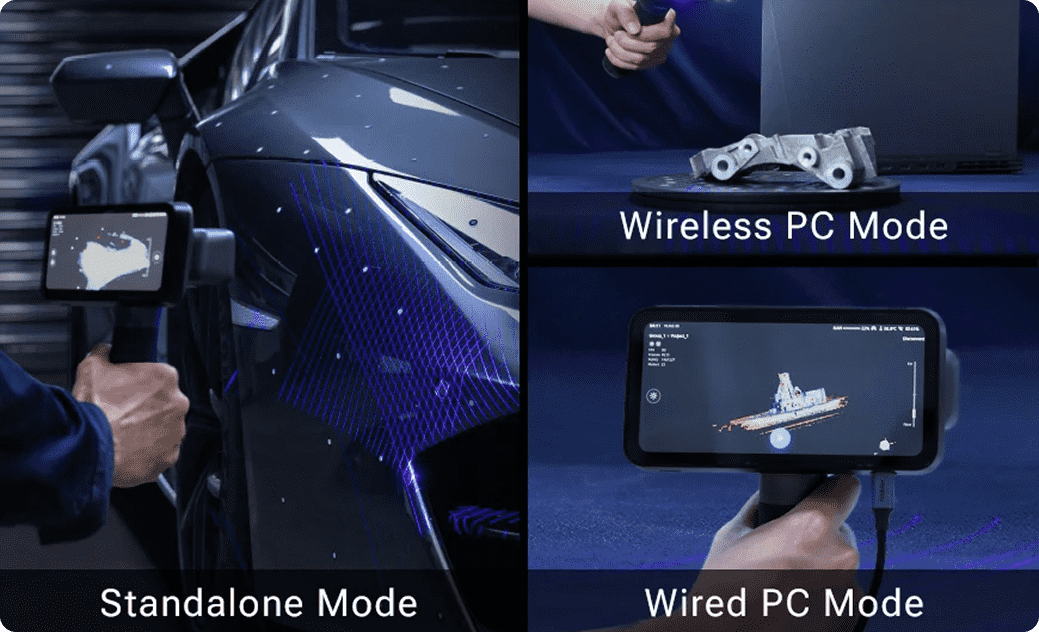

Triple Work Modes
Standalone Mode: All-in-one scanning and processing on the device
Wireless PC Mode: Connect via Wi‑Fi 6 for flexible, cable-free PC processing
Wired PC Mode: Use USB-C for stable high-speed scanning in network-limited setups
Dual Light Source Technology
Equipped with two camera systems to capture blue laser and infrared VCSEL light—ensuring broad adaptability and precision.
Laser HD Mode
Volumetric accuracy: 0.04 + 0.06 mm/m
Geometric resolution: up to 0.05 mm
Scanning via crossed (19+19) and parallel (7) blue laser lines for both speed and detail
Dynamic Laser Switching
Toggle between laser modes during a scan session and seamlessly merge data to combine efficiency and fine detail.
IR Rapid Mode
Volumetric accuracy: 0.1 + 0.3 mm/m
Working distance: 160–1500 mm
Scans up to 1.6 million points per second—ideal for large or marker-free objects

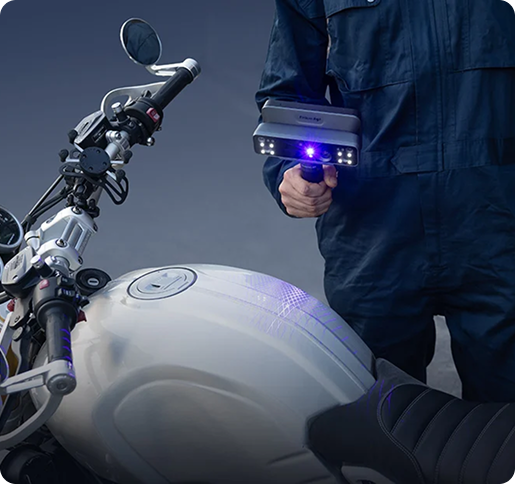

Marker-Free Laser Scanning
The EinScan Rigil uses an advanced tracking algorithm that allows marker-free blue laser scanning through its Laser + IR hybrid mode in the EXScan Rigil software. This delivers faster scanning compared to traditional marker-based methods and provides higher data quality than marker-free IR scanning alone.

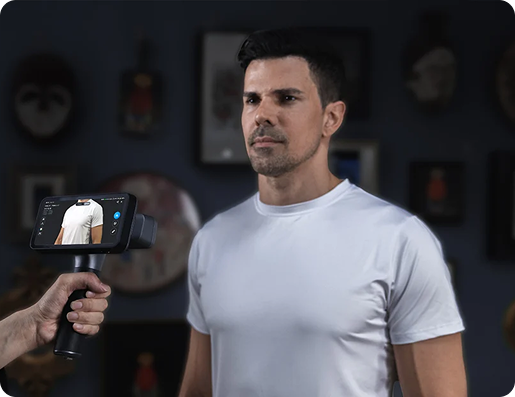

Full Color Texture Scanning
Features a built-in 5MP high-definition camera that captures detailed, high-quality textures. This helps designers, engineers, and artists preserve the true appearance of their models, ensuring accurate data for analysis and creative work.

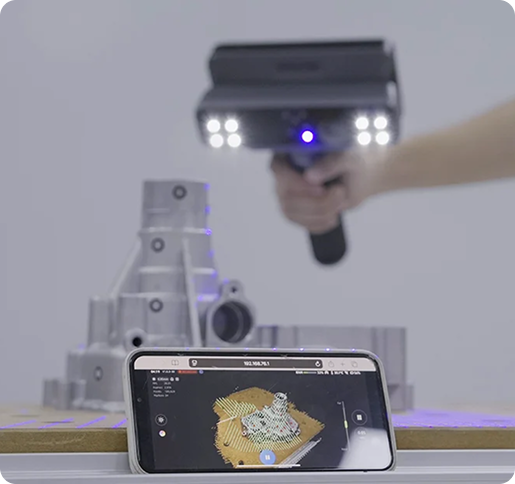

Wireless Workflow
Wireless Scanning: Perform scans without connecting to a PC.
Wireless Transfer: Easily share scan data to SHINING 3D Cloud.
Wireless Screen Casting: Mirror the device display to an external screen.

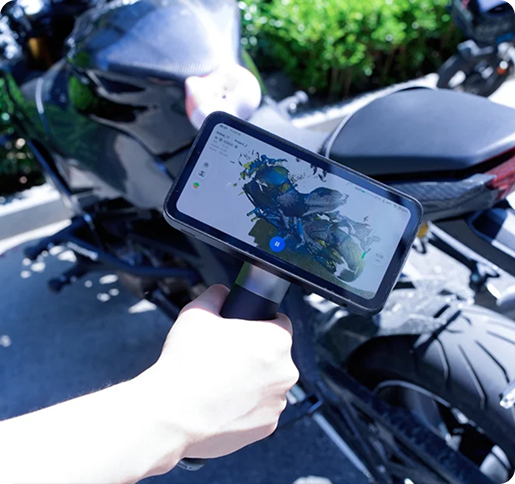

Reliable Scanning Anywhere
Works efficiently outdoors, even in direct sunlight.
Scans smoothly on dark and reflective metal surfaces without the need for spray.
Powerful Hardware
6.4" 2K AMOLED Touchscreen
32GB DDR5 RAM
32GB eMMC + 1TB SSD Storage
Dual 6000mAh Replaceable Batteries for long scanning sessions
Technical Data
| Work Mode | Wireless Standalone | PC-Wireless | PC-Wired |
|---|---|
| Scan Mode | Laser HD | IR Rapid |
| Light Source | Blue laser | IR VCSEL |
| Resolution | Laser HD Mode: 0.05 ~ 10 mm | IR Rapid Mode: 0.2 ~ 10 mm |
| Scan Speed | Laser HD Mode: 4,400,000 points/s | IR Rapid Mode: 1,600,000 points/s |
| Working Distance | Laser HD Mode: 170 ~ 550 mm | IR Rapid Mode: 160 ~ 1500 mm |
| Alignment Mode | Global Markers / Markers / Features / Texture / Hybrid |
EinScan Rigil Software
EinScan Rigil is dedicated PC software designed for professional scanning workflows. It offers powerful post-processing and mesh editing tools to help clean, refine, and prepare 3D models for seamless integration into your 3D design projects
Cutting Plane Tool
Easily cut and clean 3D models by drawing a simple line. The software automatically repairs the mesh and aligns the model as needed.
Mirror Tool
Quickly create a symmetrical copy of your 3D mesh for efficient design, repairs, or reverse engineering.
Flip Normal Tool
Fix inverted surfaces so your 3D models display correctly.
Remove Small Floating Parts
Automatically cleans up small, unwanted fragments from scan data ideal for 3D printing or reverse engineering.
Einscan Rigil , Case Study & Demo Videos
EinScan Rigil: The Tri-Mode Laser 3D Scanner
EinScan Rigil: The Tri-Mode Laser 3D Scanner
FREQUENTLY ASKED QUESTIONS
The Einscan Regil’s triple work modes—Standalone, Wireless PC, and Wired PC—offer unmatched flexibility. You can scan without a PC in standalone mode, connect wirelessly for mobility and processing power, or go fully wired for speed and large datasets. This makes it ideal for professionals in reverse engineering, inspection, and digital design.
Einscan Regil uses a hybrid light source combining blue laser and IR VCSEL, enabling scanning of diverse surfaces—shiny, dark, or reflective—with no need for spray. This results in faster scans, better accuracy, and reduced post-processing time.
Yes, Einscan Regil is designed for both indoor and outdoor scanning. Thanks to its advanced light source and tracking algorithms, it can scan efficiently even in bright sunlight, making it ideal for fieldwork and heritage conservation.
Einscan Regil is suitable for a wide range of object sizes, from small mechanical components to large automotive parts and art pieces. Its dynamic laser switching and adjustable modes ensure high-quality results across all sizes
The Einscan Regil is used in Automotive aftermarket & spare part digitisation, cultural heritage and art restoration, reverse engineering, Medical device design and orthotics, research, training, and education, and it fits perfectly into any professional workflow.
Yes, with a 5MP HD colour camera, Einscan Regil supports full-colour texture scanning, which is essential for applications like digital art, animation, AR/VR, and product customisation.
Yes, Einscan Regil integrates seamlessly with EXModel, BlueStar Mapping, and major reverse engineering platforms like Geomagic Design X, SolidWorks, and Blender. You can directly export STL, OBJ, or PLY files for design or 3D printing workflows.
Yes, using EXScan Rigil software, you can perform basic model measurements, apply cutting planes, and generate watertight surfaces ready for inspection. You can also import the scan data into Geomagic Control X and Polyworks for advanced 3D inspection tasks.
Einscan Regil supports commonly used 3D file formats, including STL, OBJ, ASC, and PLY. These formats ensure easy integration into CAD, 3D printing, or 3D Inspection software.
Yes, Einscan Regil comes with an intuitive app interface and automated workflows, making it easy even for first-time users. Features like auto-plane detection, scan rewind, and data quality indicators help guide users to perfect results.
Yes, 9 cross and 7 parallel laser lines can be switched mid-scan, and their data can be merged for detail and speed.
Powered by 2 x 6000mAh replaceable batteries or via USB-C (can scan while charging). Hot-swap is not supported.
