EinScan Pro 2X

A truly portable and versatile handheld 3D scanner for high-precision results

GET A QUOTE NOW
3d-scanning-services-ein-scan-pro-2x

The Einscan Pro 2x is an integral part of the scanning ecosystem, making professional 3D Scanning much more accessible and easier to use for beginners, while also improving the image quality and overall workflow for advanced users.

KEY FEATURES

EinScan-Pro-Series-Scanners
Accuracy of EinScan Pro Series scanners

Factory tested accuracy according to VDI/VDE 2634 standards.

3d-scanning-services
Versatile scan modes & Align modes

Scan Modes: Handheld Rapid Scan, Handheld HD Scan, Fixed Scan. Align Modes: Feature alignment, markers alignment, turntable coded targets alignment, and manual alignment.

3d-scanning-services

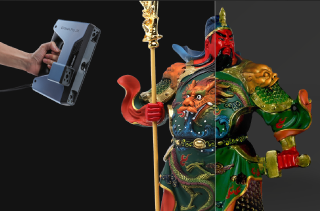

Full-Color scan

Get the full-color texture with geometry by adding the Color Pack.

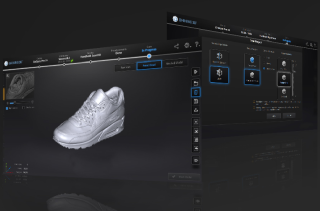

Scanning-Software-EXSCAN-PRO
New scanning software EXSCAN PRO
Brand-new UI and Workflow

Allows users a faster scanning experience during operation and sets the resolution option afterward during the data processing, which improves scanning efficiency. Outputs standard file formats including STL, OBJ, PLY, 3MF, ASC, and P3.

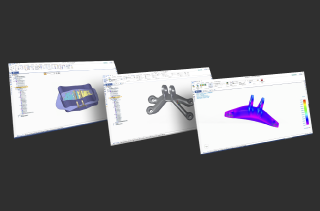

Solid-Edge-SHINING-3D-Edition
Solid Edge SHINING 3D Edition design tool from SIEMENS PLM Software
  • Convergent Modeling
  • Synchronous Modeling
  • Reverse Engineering
  • Generative Design
  • Simulation
  • Additive Manufacturing
3d-scanning-services
Portable & user-friendly design

With its lightweight and compact size, you can easily take the EinScan Pro 2X anywhere, just like a laptop. Enjoy the plug-and-play installation and a limitless scanning experience.
Package Size
37 X 36.5 X 13.5 mm
Lightweight
1.13 KG

SPECIFICATIONS

Scan Mode

Handheld HD Scan

Handheld Rapid Scan

Fixed Scan with Turntable (with Add-on: Industrial Pack)

Fixed Scan without Turntable (with Add-on: Industrial Pack)

Scan Accuracy up to 0.045 mm up to 0.1 mm 0.04 mm(single shot accuracy) 0.04 mm(single shot accuracy)
Volumetric Accuracy* 0.3 mm/m (Markers Alignment) 0.3 mm/m (Markers Alignment) / /
Scan Speed 10 fps 300,000 points/s 30 fps1,500,000 points/s Single Scan<1s Single Scan<1s
Point Distance 0.2 mm-2 mm 0.2 mm-2 mm 0.16 mm 0.16 mm
Single Scan Range 150*120 mm — 250*200 m
Depth of Field ±100 mm
Working Distance 400 mm
Light Source LED
Align Mode Marker Alignment,
Feature Alignment [3],
Hybrid Alignment [4]
Marker Alignment,
Texture Alignment [2],
Feature Alignment [3],
Hybrid Alignment [4]
Turntable Coded Targets,
Feature,
Markers,
Manual Alignment
Markers,
Feature,
Manual Alignment
Texture Scan Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack)
Outdoor Operation Set up the shelter or cover to avoid direct sunlight
Special Objects for Scanning For the transparent, highly reflective or some dark objects, please spray powder before scanning
Printable Data Output Able to export watertight 3D model directly to 3D printing
Output Formats OBJ; STL; ASC; PLY; P3 ; 3MF
Scanner Body Weight 1.13kg (include the USB 3.0 cable)
Supported OS Win7; Win8; Win10; (64bit)
Recommended Configuration Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080;video memory: ≥4G; processor: I7-8700 or higher; memory: ≥64G; interface: high-speed USB
Required Configuration Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm. The conclusion is obtained by measuring the center of sphere under marker alignment.
This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object.
Select this alignment when scanning objects with rich geometrical features on the surface.
Hybrid alignment means marker alignment and feature alignment can be switched automatically.SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more info

DEMO VIDEO

EINSCAN PRO 2X

EinScan Pro 2X Series - Geomagic Essentials and Einscan pro 2X bundle for wood carving


EinScan Pro 2X

EinScan Pro 2X Series - Multi-functional 3D Scanner - SHINING 3D Digitizing Solutions

SAMPLE DATA

Frequently asked questions

What kind of technology is used the EINSCAN PRO 2X scanner?

The truly portable and versatile handheld EINSCAN PRO 2X 3D Scanner is made using German technology.

Which country makes the EINSCAN PRO 2X scanner?

EinScan Pro 2X scanner is designed in Germany it is manufactured in China.

What is the range of scanning in the EINSCAN PRO 2X scanner?

EINSCAN PRO 2X is factory tested and has a fixed scan accuracy of up to 400mm.

What are the advantages of the EINSCAN PRO 2X scanner?

EinScan Pro 2X gives the user a faster scanning experience during operation and sets the resolution option afterward during the data processing, which improves scanning efficiency.

It has various scanning modes like hand-held rapid scan and turntable coded alignment.

It catches fine details and suitable for small to medium size objects.
