FIGURE 4 FLEX-BLK 20


OVER VIEW

Durable, flexible, high-impact resistant material with long-term environmental stability.

    BOOK A DEMO GET A QUOTE
APPLICATIONS

. Functional assemblies and prototypes

- Automotive styling parts

- Consumer goods and electronic components

- Containers and enclosures

- Product design

. Master patterns for RTV/silicone molding

. Concept and marketing models

BENEFITS

. Reliable and robust functional prototypes

. Excellent mechanical properties and accuracy

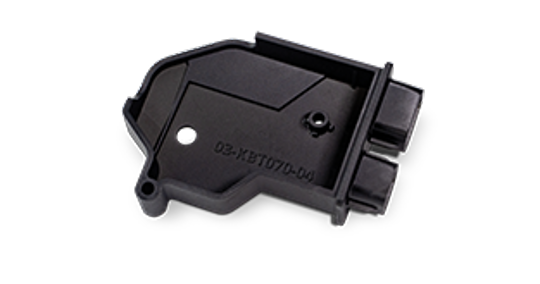

. Beautiful black parts with look and feel of molded black polypropylene

. Improved environmental stability of mechanical and performance properties over time

FEATURES

. High elongation at break and notched impact strength

. Lower tensile modulus

. Engineered for long term environmental stability

. Easy to clean



KEY MATERIAL PROPERTIES

The full suite of mechanical properties is given per ASTM and ISO standards where applicable. All parts are conditioned per ASTM recommended standards for a minimum of 40 hours at 23 C, 50% RH. Material properties include physical and mechanical properties, as well as thermal, UL flammability, and electrical (dielectric strength, dielectric constant, dissipation factor, and volume resistivity).

ISOTROPIC PROPERTIES

Figure 4 technology prints parts that are isotropic in mechanical properties meaning the parts printed along either the XYZ axis will give similar results. Parts do not need to be oriented to get the highest mechanical properties, further improving the degree of freedom for part orientation for mechanical properties.



TECHNICAL SPECIFICATIONS

KEY MECHANICAL PROPERTIES

. Elongation at break: 86%

. Tensile modulus: 840 MPa

. Impact strength (notched Izod): 91 J/m

. Heat Deflection Temperature @ 0.455 MPa: 41°C
